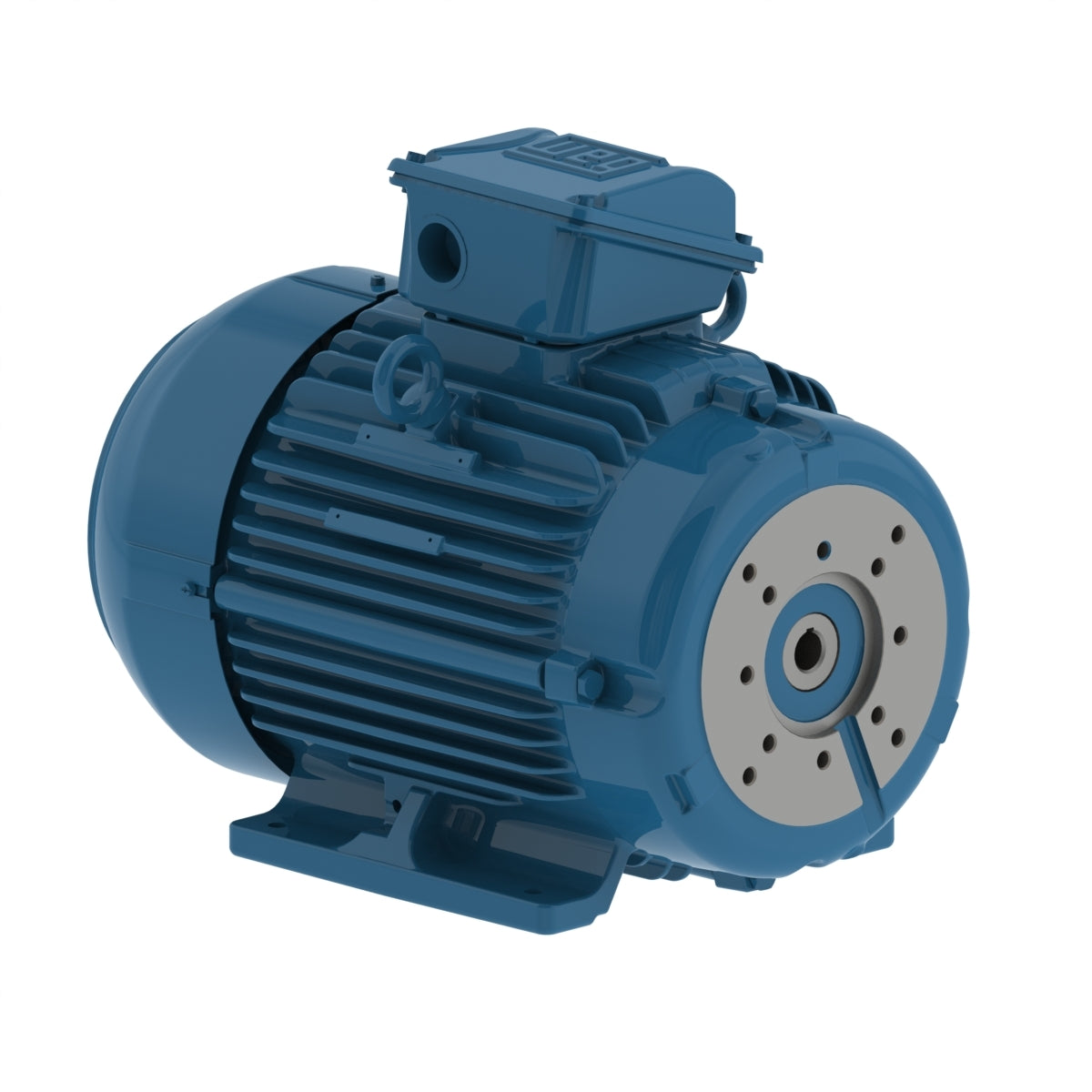

Weg Electric 01018EP3EHP215TYZ7F3, 10 HP, 215TYZ Frame, 1800 RPM, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

01018EP3EHP215TYZ7F3, 10 HP, 215TYZ Frame, 1800 RPM, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Special
Mounting F-3
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 215TYZ
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 34.7-31.4/15.7 A
L. R. Amperes 316-286/143 A
LRC 9.1x(Code N)
No load current 23.9-21.6/10.8 A
Rated torque 29.6 ft.lb
Locked rotor torque 340 %
Breakdown torque 430 %
Locked rotor time 18s (cold) 10s (hot)
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle S3
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
