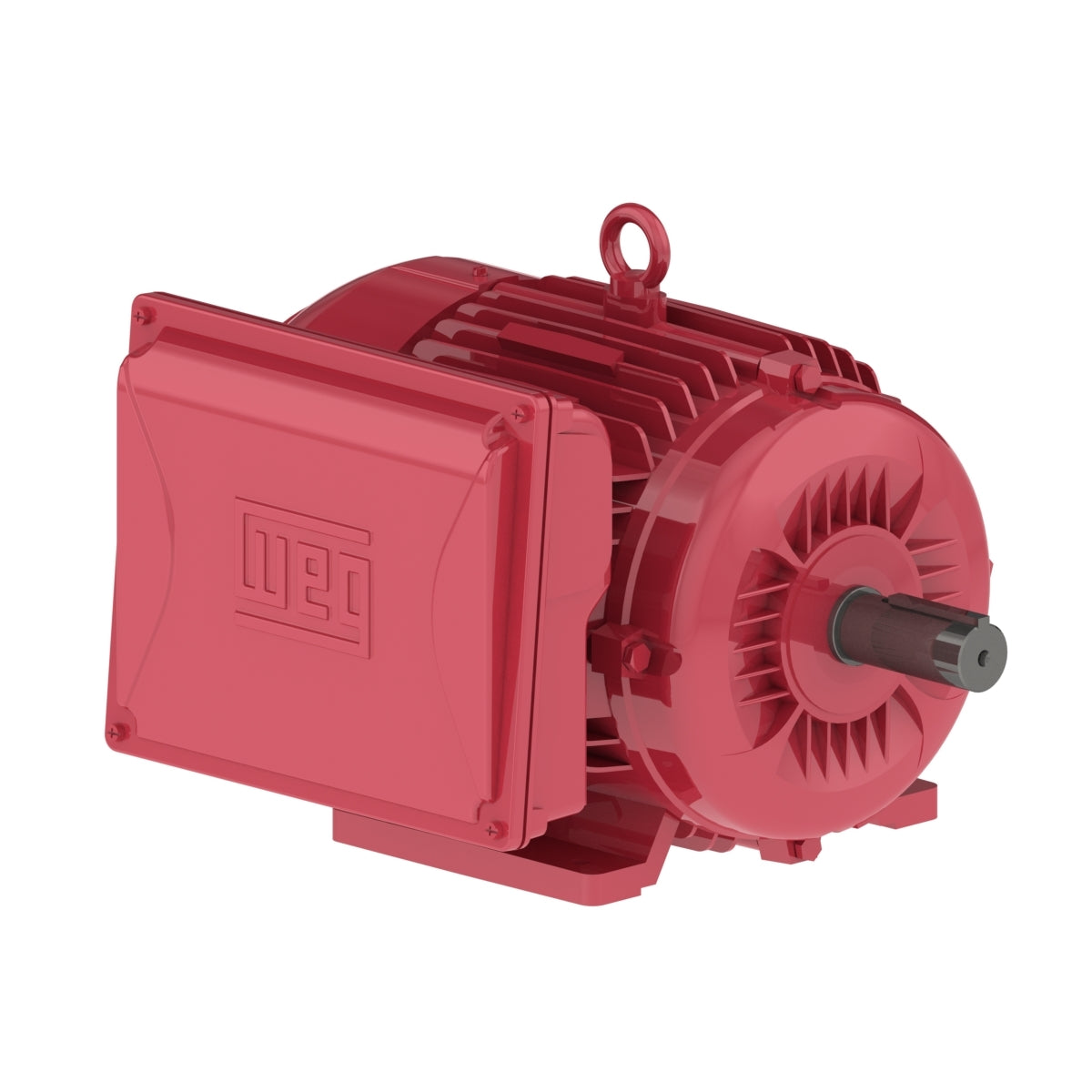

Weg Electric 01018ES1DFD215T-W22, 10 HP, 213/5T Frame, 1800 RPM, 230 Vac, TEFC, 3 PH, Foot-mounted, W22.

01018ES1DFD215T-W22, 10 HP, 213/5T Frame, 1800 RPM, 230 Vac, TEFC, 3 PH, Foot-mounted, W22.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 230 V
Rated current 40.9 A
L. R. Amperes 274 A
LRC 6.7x(Code H)
No load current 11.2 A
Rated torque 30.2 ft.lb
Locked rotor torque 260 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.15 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
