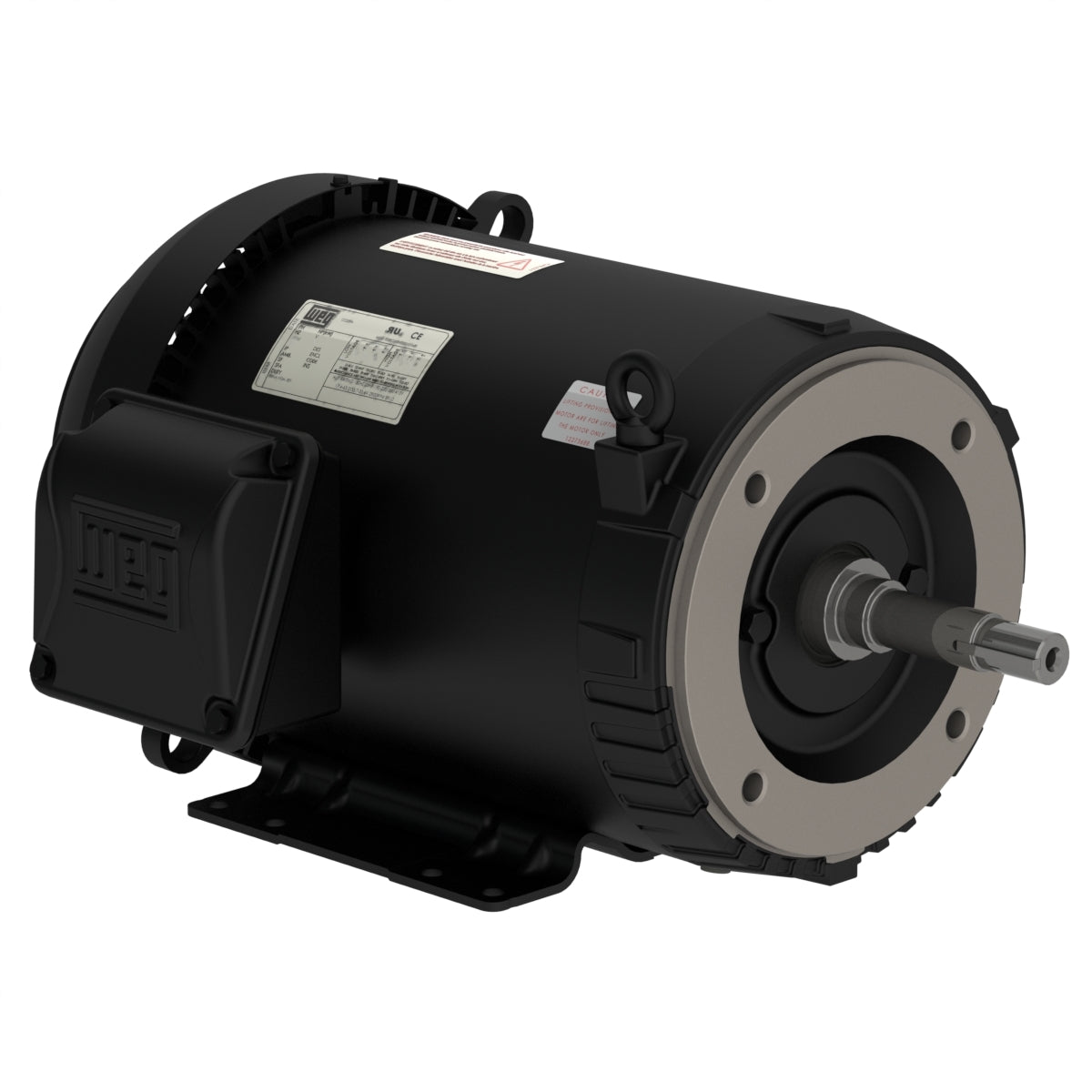

Weg Electric 01018ET3E215JM-S, 10 HP, 213/5JM Frame, 1800 RPM, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

01018ET3E215JM-S, 10 HP, 213/5JM Frame, 1800 RPM, 230/460//190-220/380-415 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 24.4/12.2 A
L. R. Amperes 171/85.4 A
LRC 7.0x(Code H)
No load current 11.1/5.54 A
Rated torque 29.8 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
