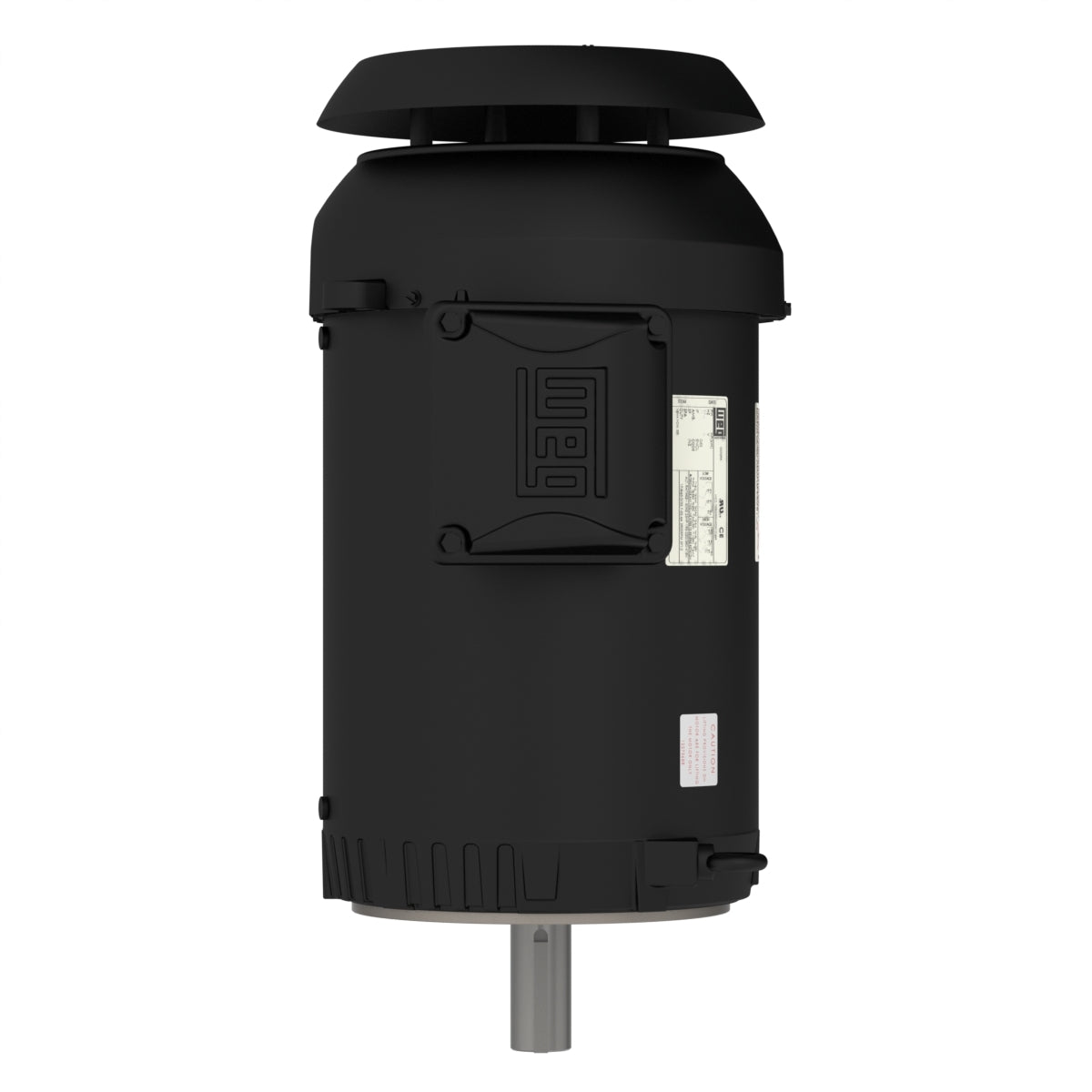

Weg Electric 01018ET3HR215TC-S, 10 HP, 213/5TC Frame, 1800 RPM, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

01018ET3HR215TC-S, 10 HP, 213/5TC Frame, 1800 RPM, 575 Vac, TEFC, 3 PH, Footless, Rolled Steel NEMA Premium Efficiency.

Engineering Data

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 9.76 A
L. R. Amperes 68.3 A
LRC 7.0x(Code H)
No load current 4.43 A
Rated torque 29.8 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.07 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
