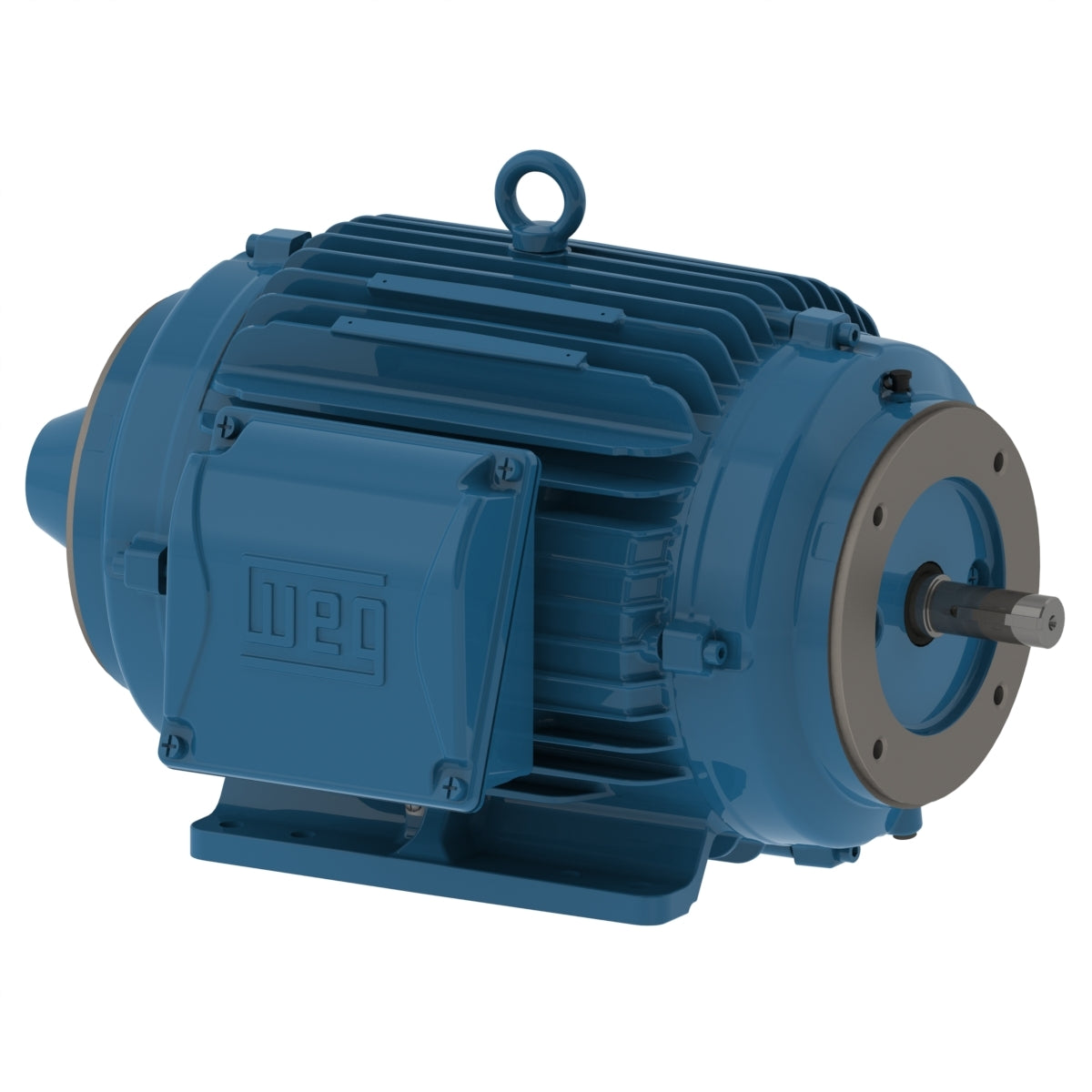

Weg Electric 01018ET3P215JM-W22, 10 HP, 213/5TC Frame, 3600 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JM NEMA Premium Efficiency.

01018ET3P215JM-W22, 10 HP, 213/5TC Frame, 3600 RPM, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JM NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 23.2/11.6 A
L. R. Amperes 167/83.5 A
LRC 7.2x(Code H)
No load current 6.80/3.40 A
Rated torque 15.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
