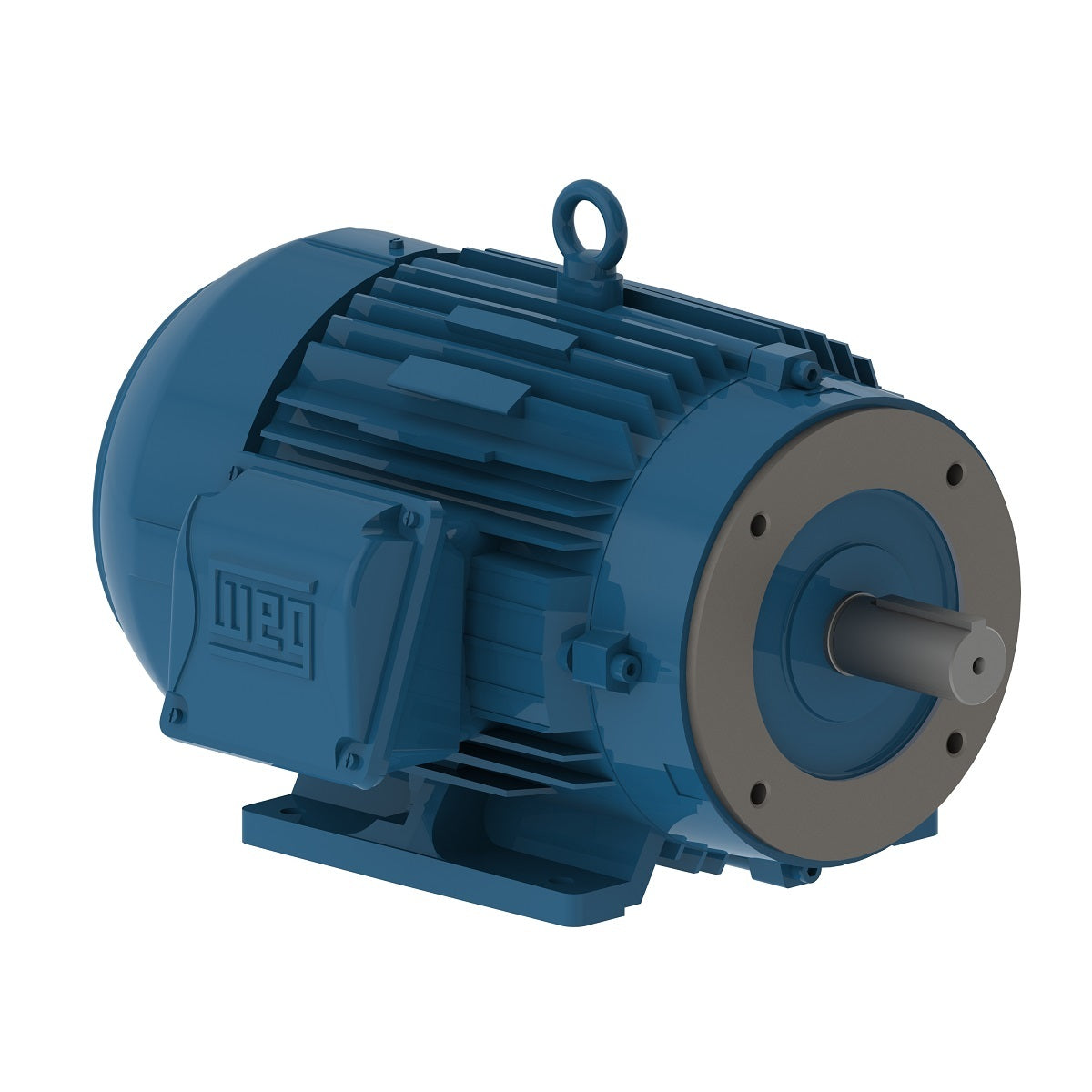

Weg Electric 01018ET3V215TC-W22, 10 Hp, 213/5TC Frame, 1800 RPM, 200/400 Vac, TEFC, 3 PH, Foot-Mounted, W22 NEMA Premium Efficiency.

01018ET3V215TC-W22, 10 Hp, 213/5TC Frame, 1800 RPM, 200/400 Vac, TEFC, 3 PH, Foot-Mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 200/400 V
Rated current 28.5/14.3 A
L. R. Amperes 183/91.3 A
LRC 6.4x(Code H)
No load current 13.0/6.50 A
Rated torque 29.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 295 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
