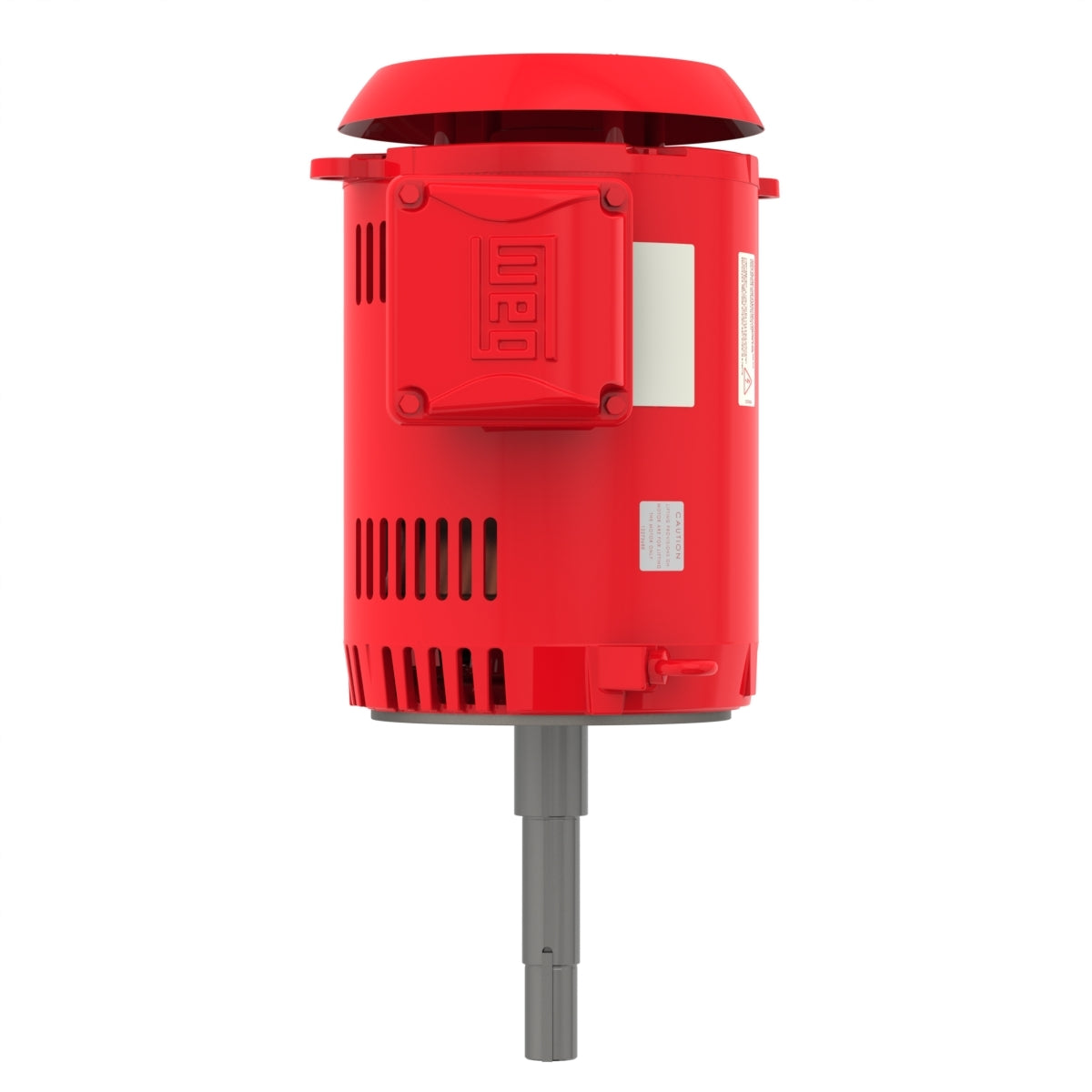

Weg Electric 01018OP3EFP215JPV-S, 10 HP, 213/5JP Frame, 1800 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency.

01018OP3EFP215JPV-S, 10 HP, 213/5JP Frame, 1800 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1760 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 24.8/12.4 A
L. R. Amperes 161/80.6 A
LRC 6.5x(Code H)
No load current 11.2/5.62 A
Rated torque 29.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 270 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 1.03 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
