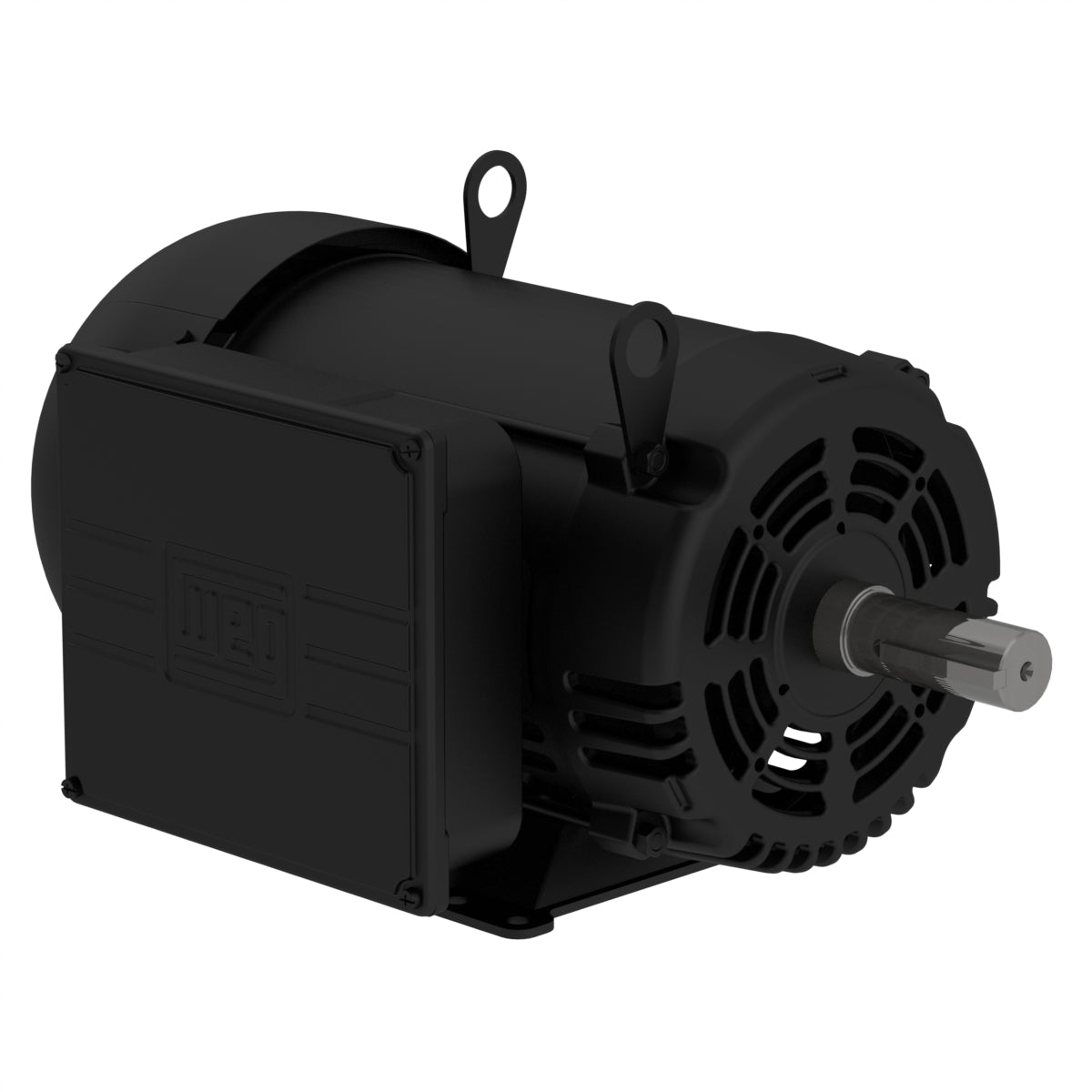

Weg Electric 01018OS1CCD215T, 10 HP, 215T Frame, 1800 RPM, 208-230 Vac, ODP, 3 PH, Foot-mounted, Motor.

01018OS1CCD215T, 10 HP, 215T Frame, 1800 RPM, 208-230 Vac, ODP, 3 PH, Foot-mounted, Motor.

Engineering Data

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 215T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1720 rpm
Slip 4.44 %
Rated voltage 208-230 V
Rated current 44.2-40.0 A
L. R. Amperes 274-248 A
LRC 6.2x(Code G)
No load current 5.20-5.80 A
Rated torque 30.5 ft.lb
Locked rotor torque 280 %
Breakdown torque 210 %
Locked rotor time 10s (cold) 6s (hot)
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
