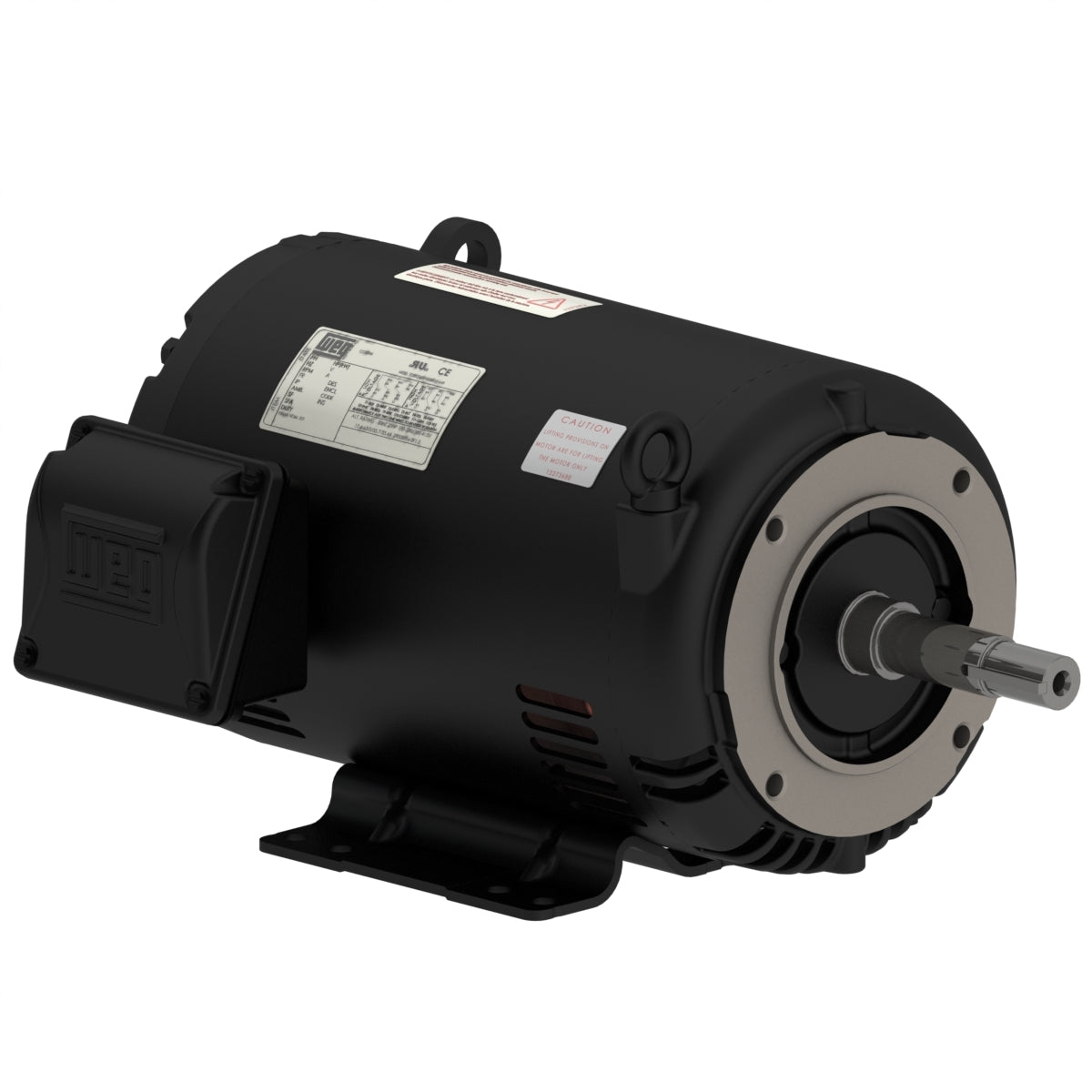

Weg Electric 01018OT3E215JP-SG, 10 Hp, 1800 Rpm, 213/5JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted

01018OT3E215JP-SG, 10 Hp, 1800 Rpm, 213/5JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-mounted

Engineering Data

The W01 “JP” (gasket) motors were especially developed for application on pumps with direct coupling. These motors are supplied with Aegis® bearing protection ring to avoid current flow along the motor shaft, across the bearing and return to the frame thus preventing premature bearing wear and failure due to electric currents flowing through them.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 24.8/12.4 A
L. R. Amperes 174/86.8 A
LRC 7.0x(Code H)
No load current 12.0/5.99 A
Rated torque 29.7 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.30 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
