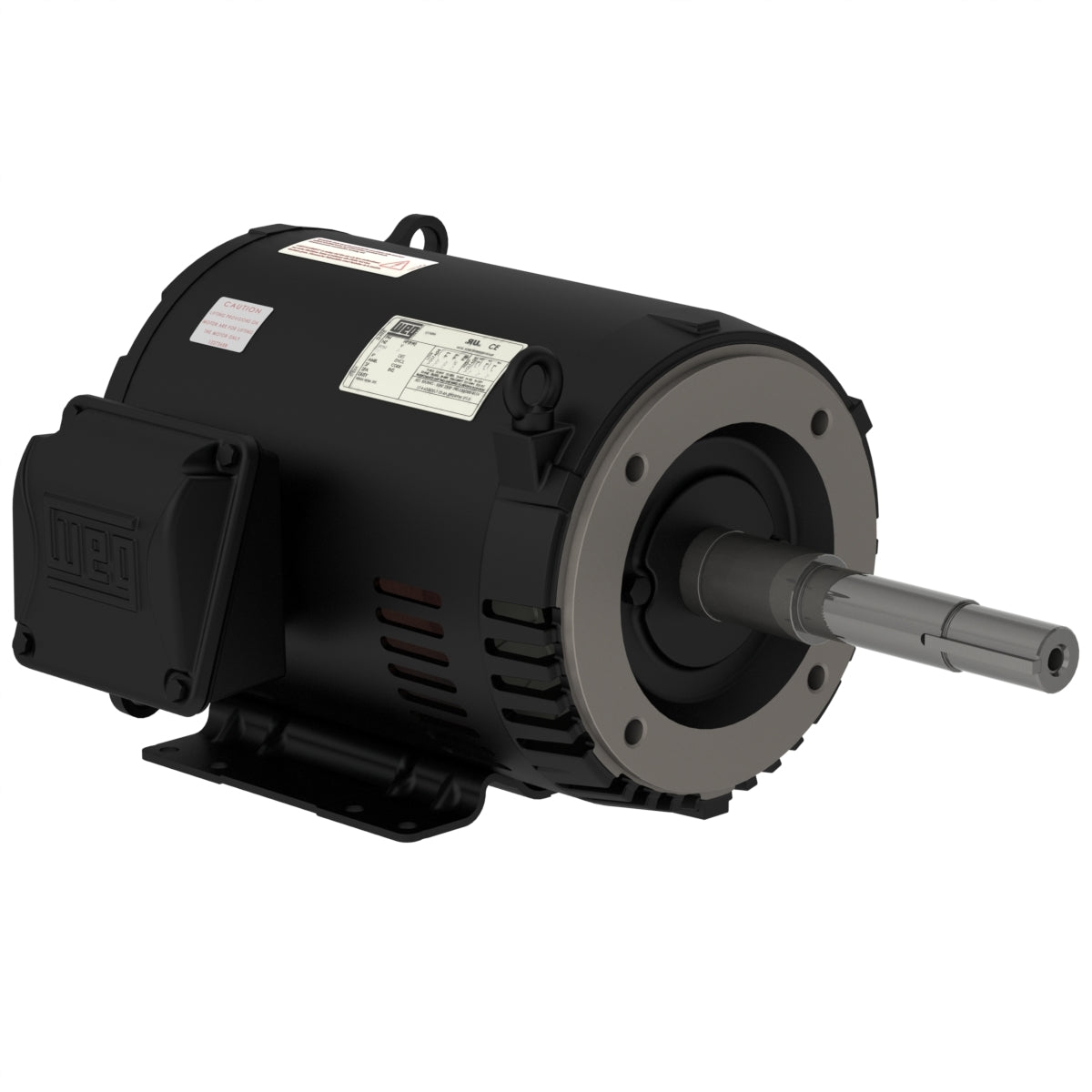

Weg Electric 01018OT3H215JP-S, 10 HP, 213/5JP Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.

01018OT3H215JP-S, 10 HP, 213/5JP Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 9.92 A
L. R. Amperes 69.4 A
LRC 7.0x(Code H)
No load current 4.79 A
Rated torque 29.7 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.30 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
