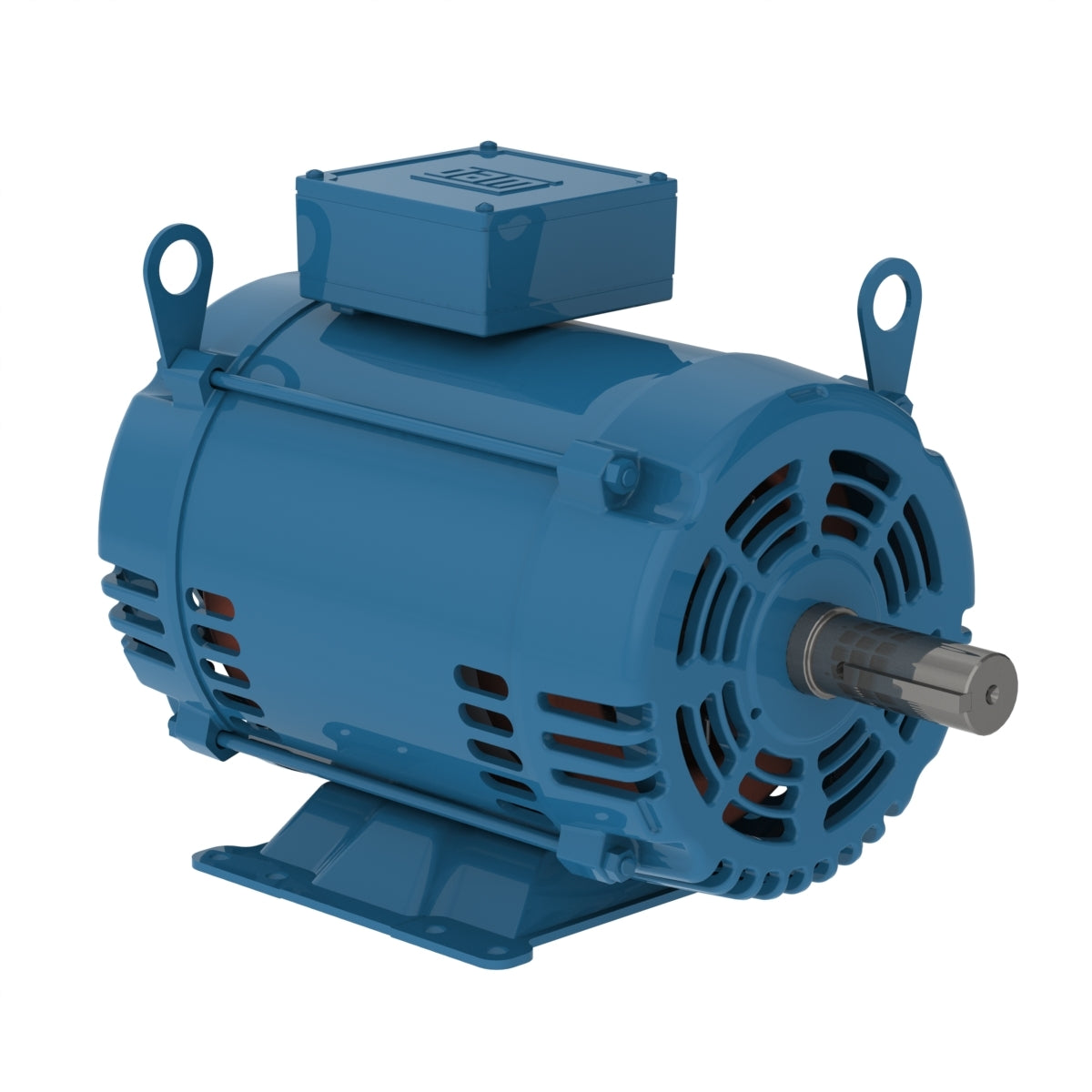

Weg Electric 01018OT3P215TF3, 10 HP, 213/5T Frame, 1800 RPM, 200 Vac, ODP, 3 PH, Foot-mounted, General NEMA Premium Efficiency.

01018OT3P215TF3, 10 HP, 213/5T Frame, 1800 RPM, 200 Vac, ODP, 3 PH, Foot-mounted, General NEMA Premium Efficiency.

Engineering Data

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC01 - ODP

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 200 V
Rated current 28.1 A
L. R. Amperes 177 A
LRC 6.3x(Code G)
No load current 13.8 A
Rated torque 29.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.20 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
