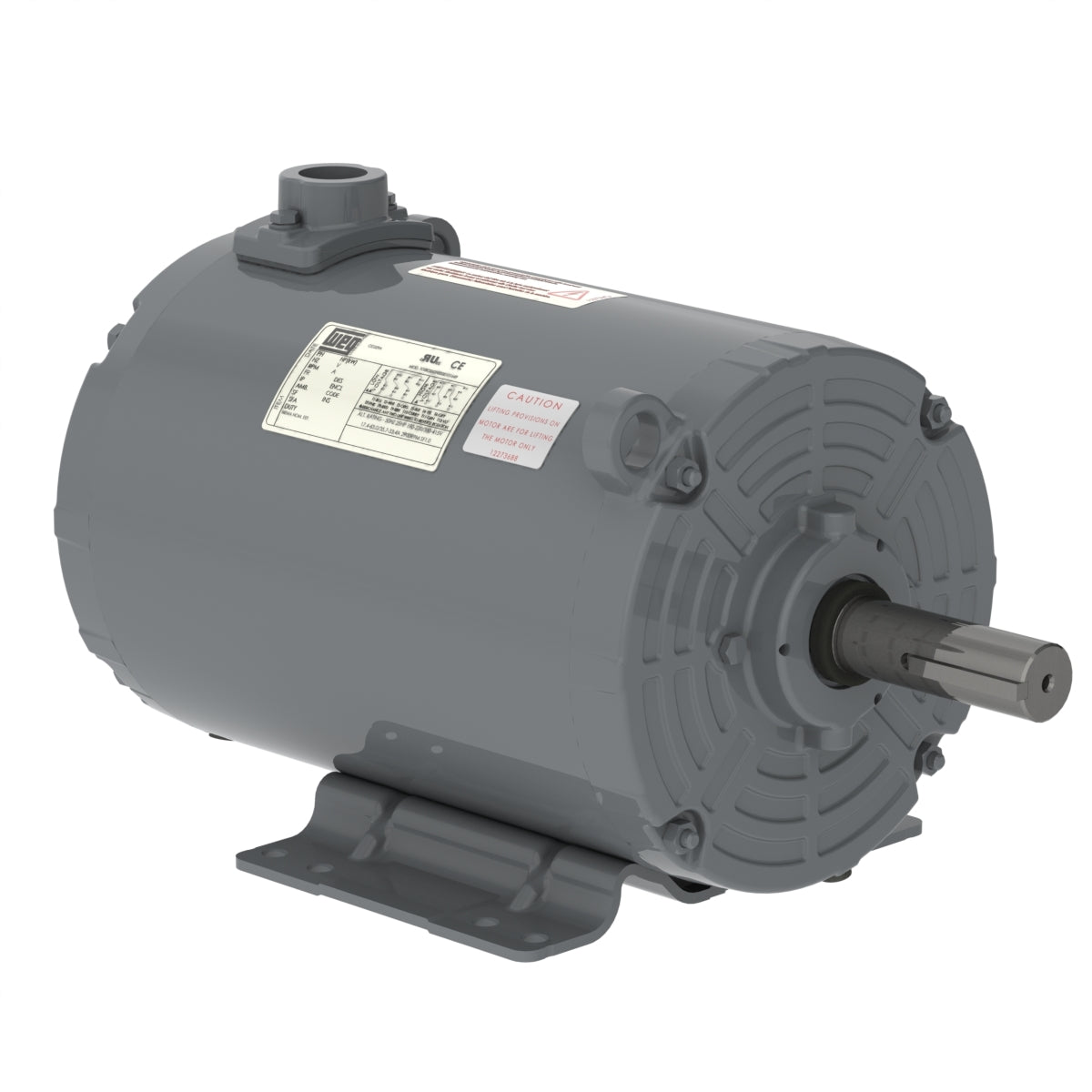

Weg Electric 01036AP3EGD184TZ-S, 10 HP, 182/4TZ Frame, 3600 RPM, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

01036AP3EGD184TZ-S, 10 HP, 182/4TZ Frame, 3600 RPM, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5-10 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC410 - TEAO

Frame 182/4TZ
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3480 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 26.1-23.6/11.8 A
L. R. Amperes 191-172/86.1 A
LRC 7.3x(Code H)
No load current 7.58-8.79/4.39 A
Rated torque 15.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 16s (cold) 9s (hot)
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
