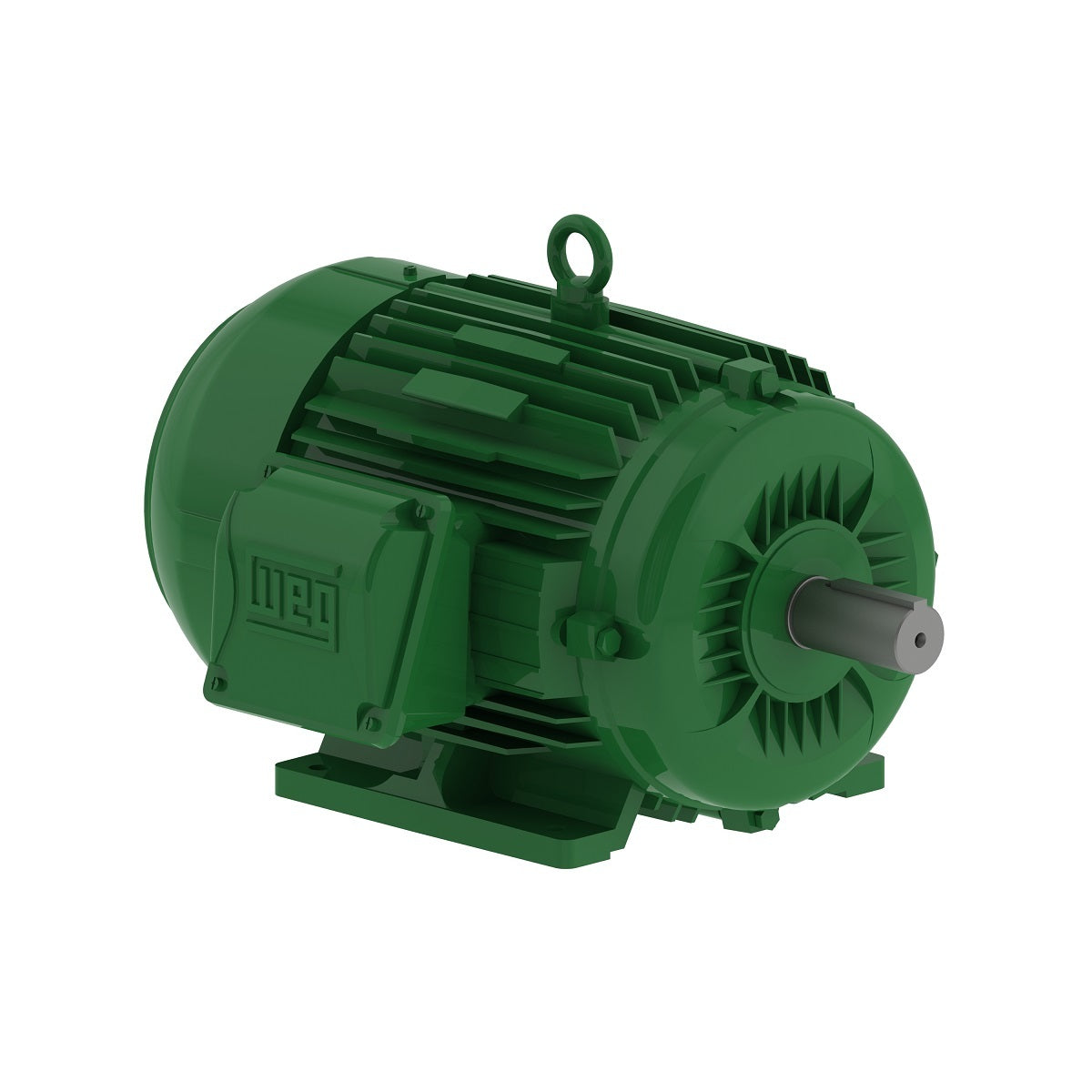

Weg Electric 01036EG3E215T-W22, 10 HP, 213/5T Frame, 3600 RPM, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

01036EG3E215T-W22, 10 HP, 213/5T Frame, 3600 RPM, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Carry CSA Certified for Division 2 on the Nameplate as standard.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 230/460 V
Rated current 23.0/11.5 A
L. R. Amperes 184/92.0 A
LRC 8.0x(Code J)
No load current 8.40/4.20 A
Rated torque 14.9 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 0.7185 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
