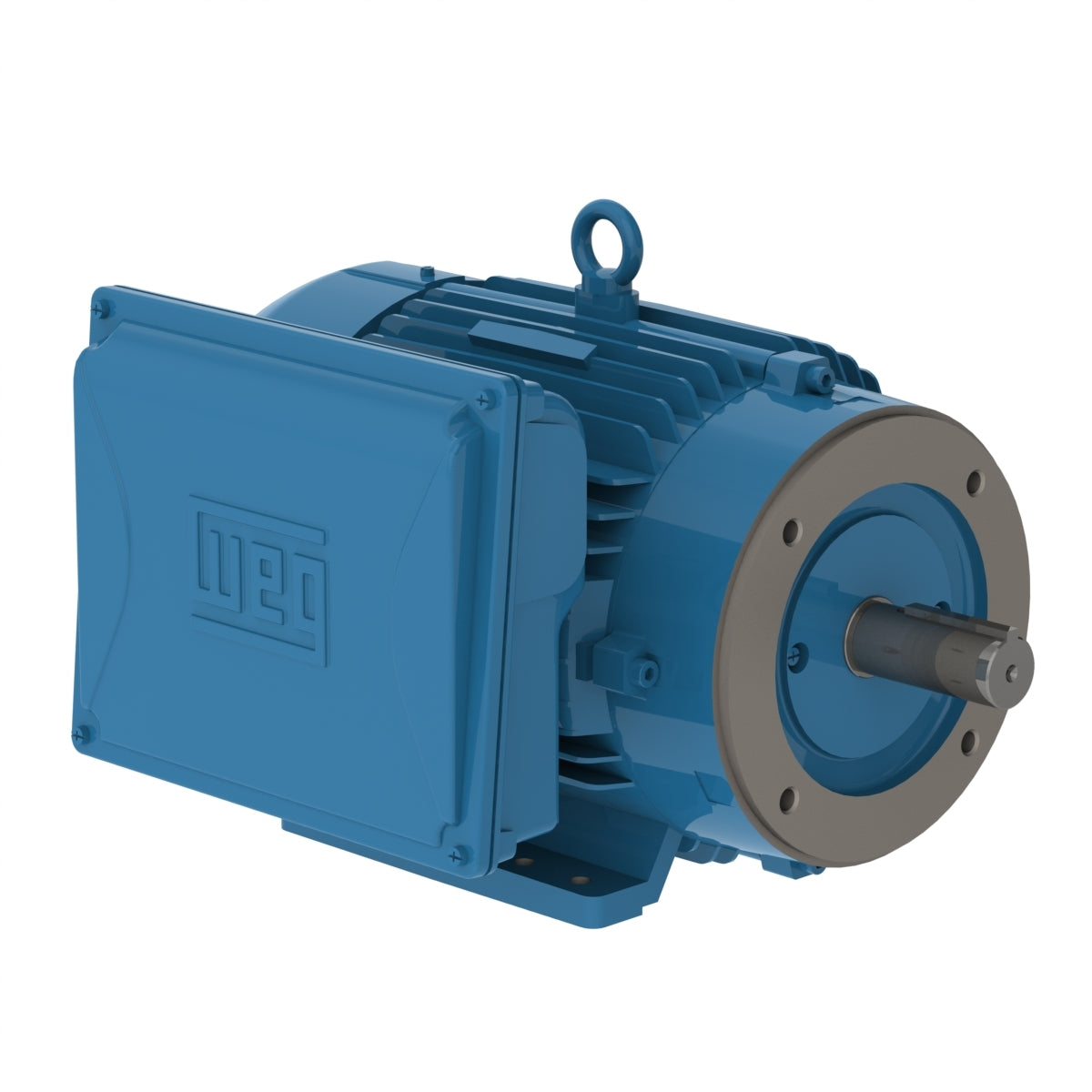

Weg Electric 01036ES1C215JP-W22, 10 Hp, 3600 Rpm, 208-230 Frame, 213/5JP Vac, TEFC, 1 PH, Foot-mounted, JP Pump.

01036ES1C215JP-W22, 10 Hp, 3600 Rpm, 208-230 Frame, 213/5JP Vac, TEFC, 1 PH, Foot-mounted, JP Pump.

Engineering Data

High starting torque.
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket).
Suitable for domestic and rural power supply conditions.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 208-230 V
Rated current 41.8-38.9 A
L. R. Amperes 293-272 A
LRC 7.0x(Code G)
No load current 5.95-6.90 A
Rated torque 14.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.5285 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
