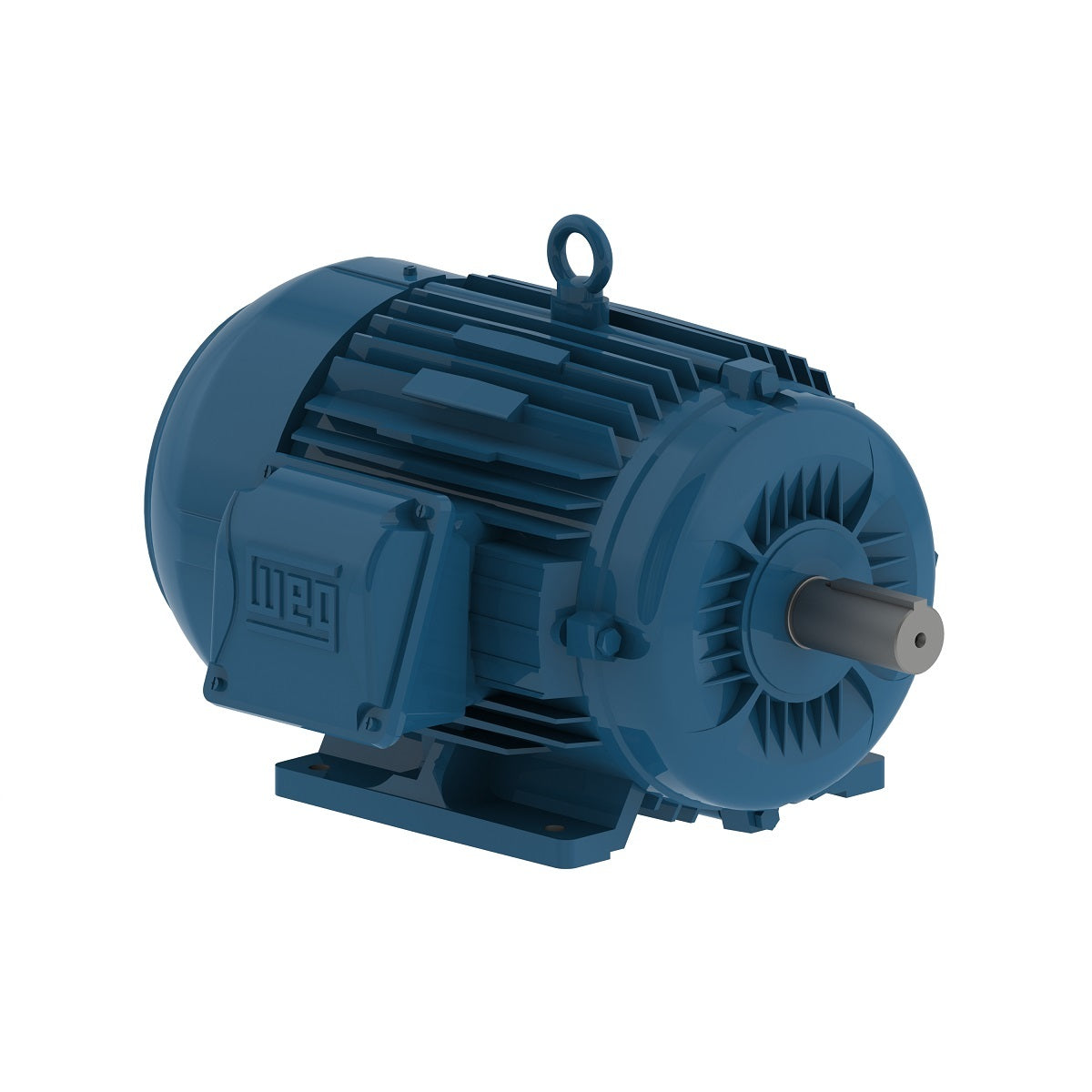

Weg Electric 01036ET3E215T-W22, 10 Hp, 3600 Rpm, 213/5T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

01036ET3E215T-W22, 10 Hp, 3600 Rpm, 213/5T FR, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 23.2/11.6 A
L. R. Amperes 167/83.5 A
LRC 7.2x(Code H)
No load current 6.80/3.40 A
Rated torque 15.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
