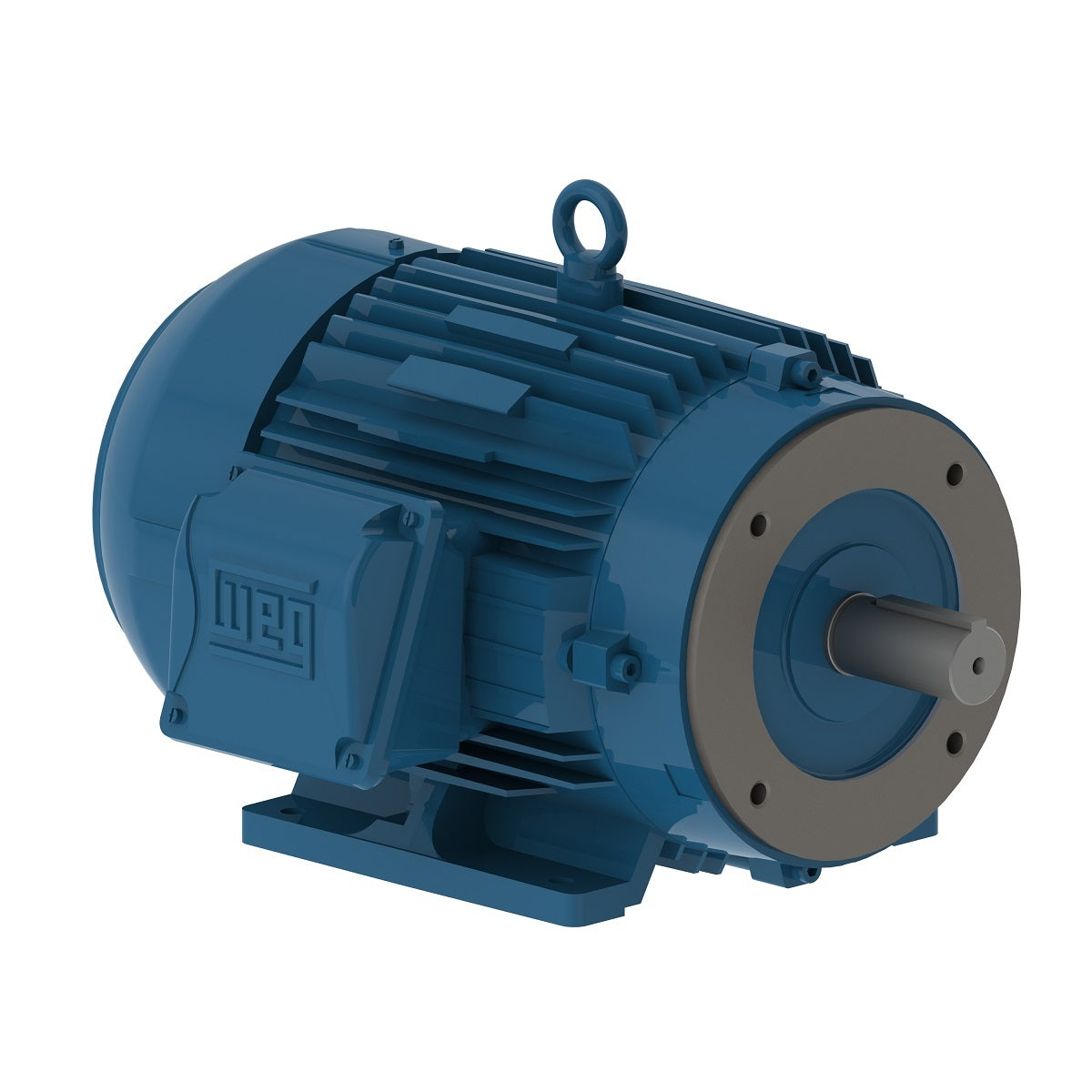

Weg Electric 01036ET3H215JM-W22, 10 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Closed Coupled Pump JM NEMA.

01036ET3H215JM-W22, 10 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Closed Coupled Pump JM NEMA.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 575 V
Rated current 9.28 A
L. R. Amperes 66.8 A
LRC 7.2x(Code H)
No load current 2.72 A
Rated torque 15.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.6362 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
