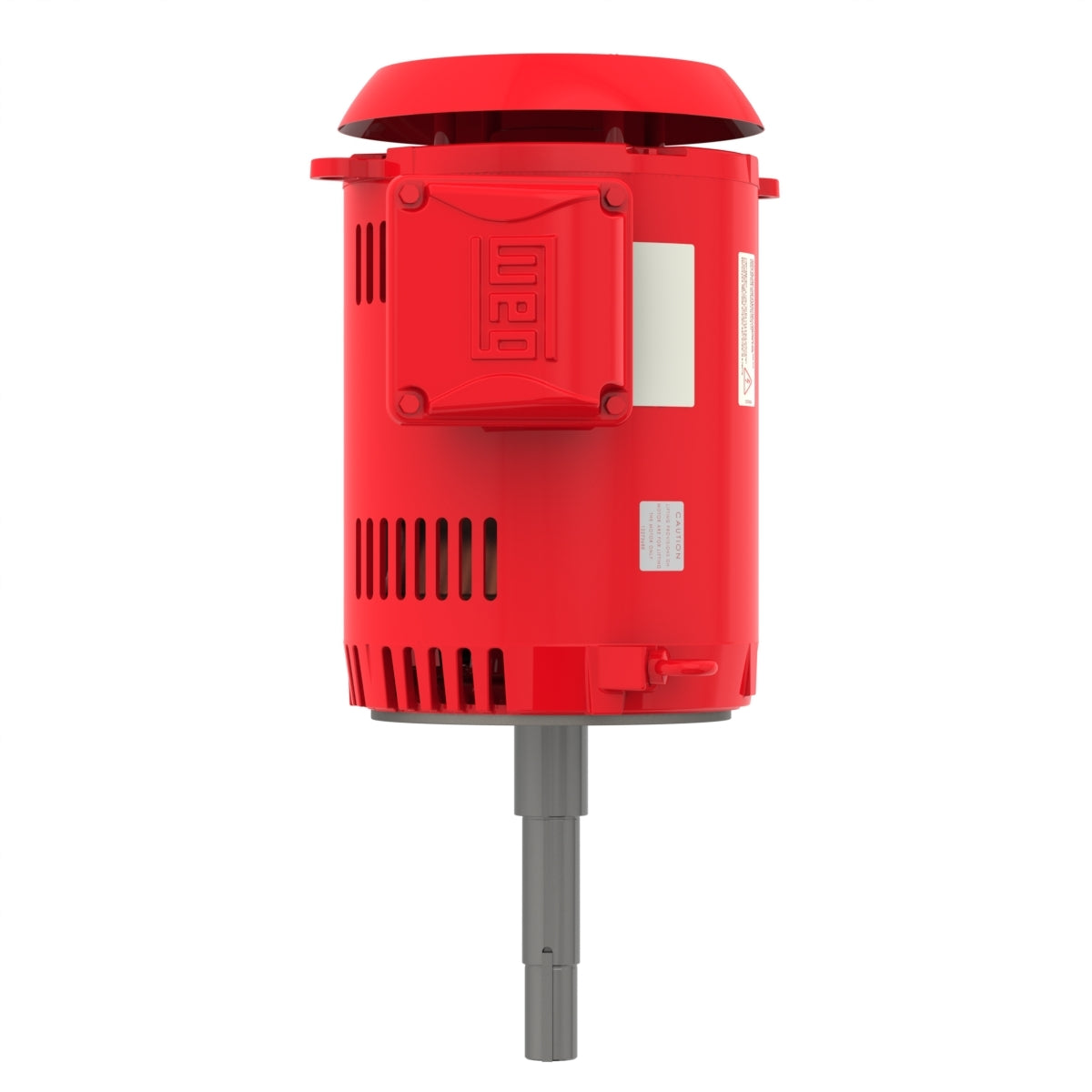

Weg Electric 01036OP3EFP213JMV-S, 10 HP, 213/5JM Frame, 3600 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.

01036OP3EFP213JMV-S, 10 HP, 213/5JM Frame, 3600 RPM, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.

Engineering Data

The W01 “JM” (mechanical seal) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 24.4/12.2 A
L. R. Amperes 156/78.1 A
LRC 6.4x(Code G)
No load current 10.3/5.13 A
Rated torque 14.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.3816 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
