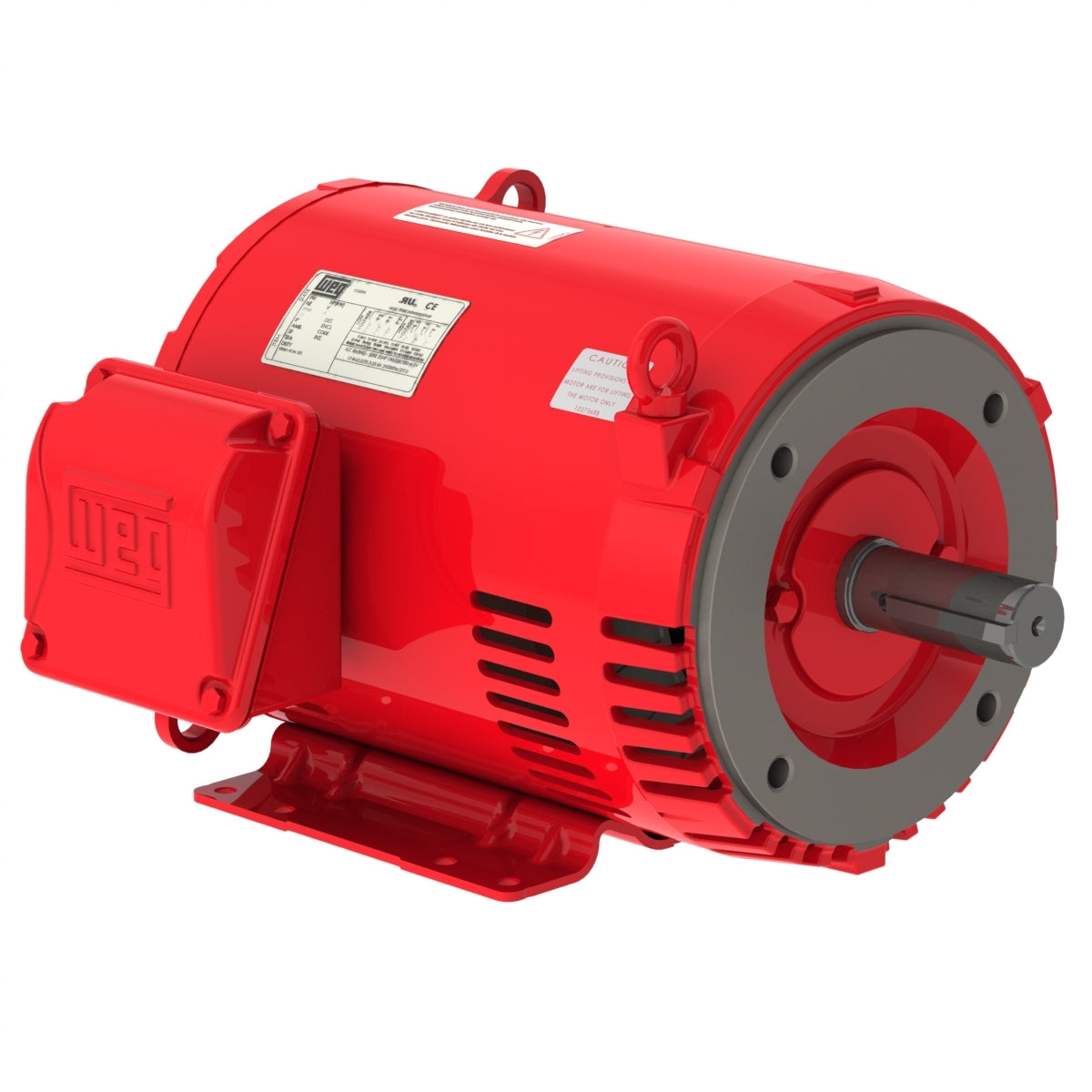

Weg Electric 01036OP3HFP213TC-S, 10 HP, 213/5TC Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel High Efficiency.

01036OP3HFP213TC-S, 10 HP, 213/5TC Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3530 rpm
Slip 1.94 %
Rated voltage 575 V
Rated current 9.76 A
L. R. Amperes 62.5 A
LRC 6.4x(Code G)
No load current 4.10 A
Rated torque 14.9 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.3816 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
