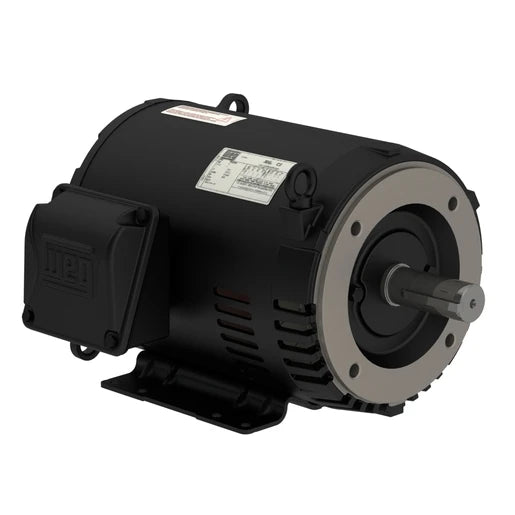

Weg Electric 01036OT3E213TC-S, 10 Hp, 3600 Rpm, 213/5TC Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 12674692

Weg Electric 01036OT3E213TC-S, 10 Hp, 3600 Rpm, 213/5TC Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 12674692

$1,007.48
$1,007.48
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01036OT3E213TC-S, 10 Hp, 3600 Rpm, 213/5TC Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 12674692

SPECIFICATIONS

Frame 213/5TC
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 230/460 V
Rated current 24.8/12.4 A
L. R. Amperes 169/84.3 A
LRC 6.8x(Code H)
No load current 11.2/5.60 A
Rated torque 14.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 116 lb
