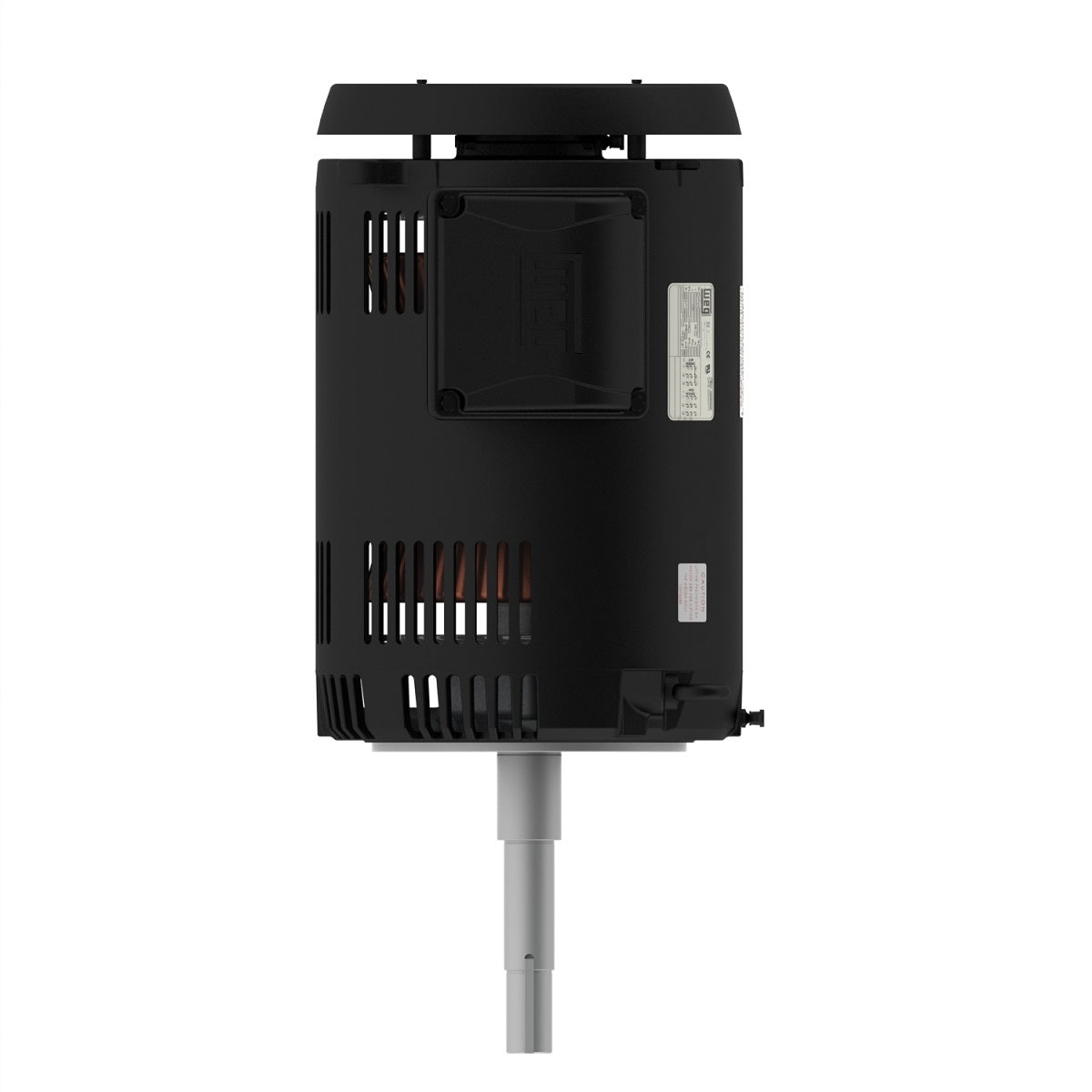

Weg Electric 01036OT3V213JPV-S, 10 HP, 213/5JP Frame, 3600 RPM, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Premium Efficiency.

01036OT3V213JPV-S, 10 HP, 213/5JP Frame, 3600 RPM, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 10 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JP
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 200/400 V
Rated current 27.6/13.8 A
L. R. Amperes 188/93.8 A
LRC 6.8x(Code H)
No load current 10.7/5.36 A
Rated torque 14.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
