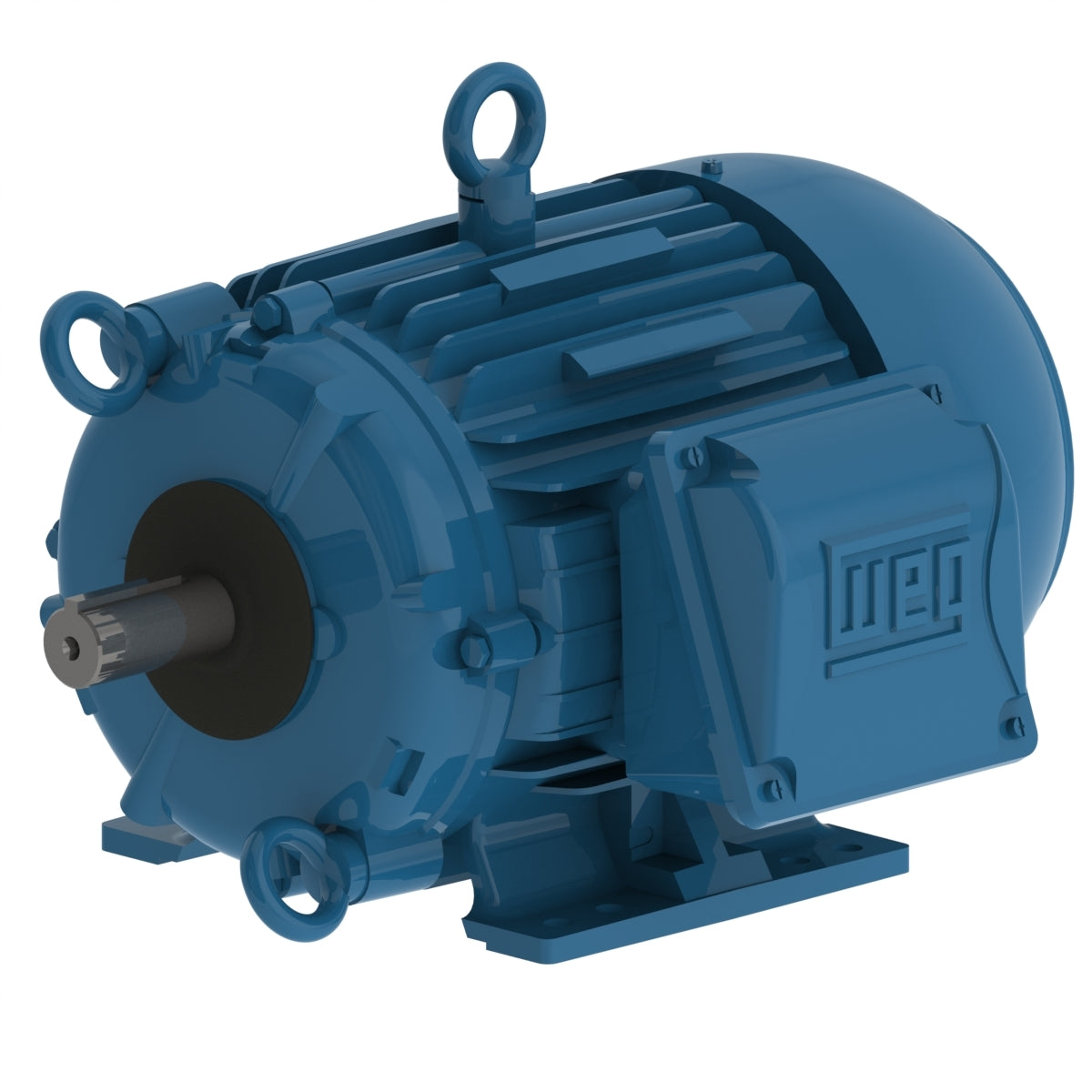

Weg Electric 01089EP3HCT215V-W22, 10 Hp, 900/1800 Rpm, 213/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

01089EP3HCT215V-W22, 10 Hp, 900/1800 Rpm, 213/5T FR, 575 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 2.5/10 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 213/5T
Output 10 HP (7.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 575 V
Rated current 10.4 A
L. R. Amperes 72.8 A
LRC 7.0x(Code J)
No load current 5.76 A
Rated torque 29.8 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.56 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
