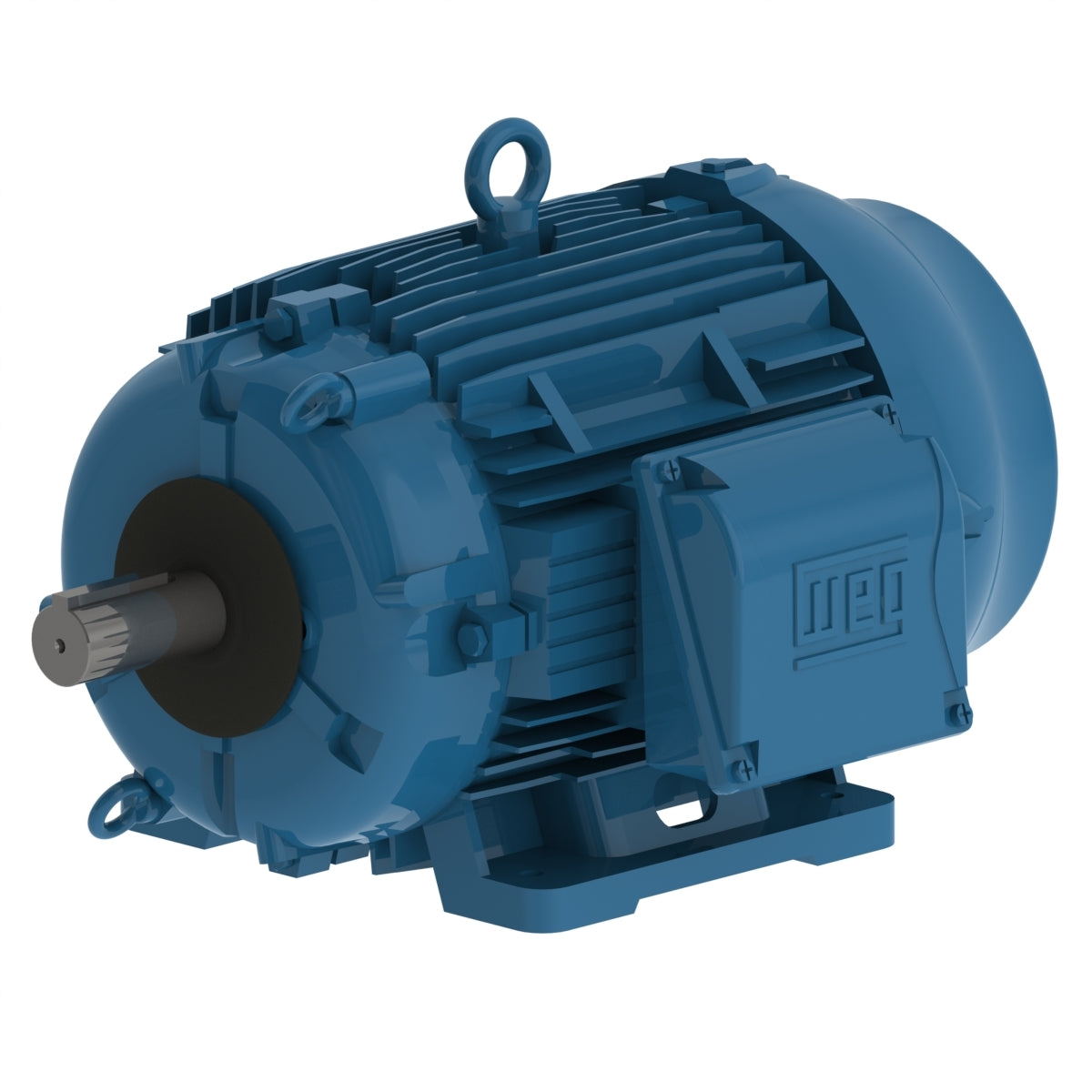

Weg Electric 01089EP3QCT256V2-W22, 10 Hp, 900/1800 Rpm, 254/6T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

01089EP3QCT256V2-W22, 10 Hp, 900/1800 Rpm, 254/6T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 2.5/10 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 254/6T
Output 10 HP (7.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 12.3 A
L. R. Amperes 88.2 A
LRC 7.2x(Code H)
No load current 4.50 A
Rated torque 29.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 290 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 2.96 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
