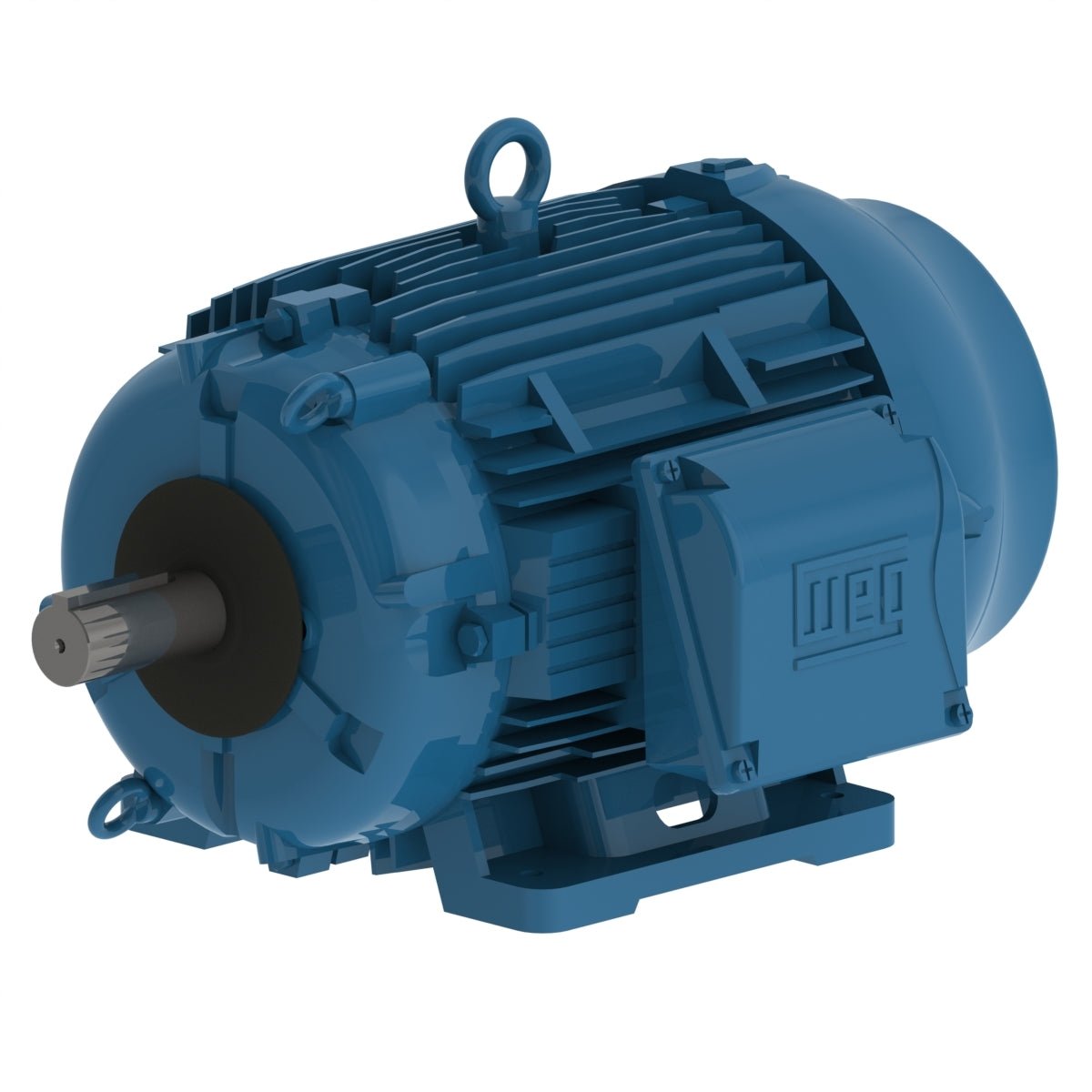

Weg Electric 01112ET3Y160L-W22, 15 Hp, 1200 Rpm, 160L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted.

01112ET3Y160L-W22, 15 Hp, 1200 Rpm, 160L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 160L
Output 15 HP (11 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 19.6 A
L. R. Amperes 157 A
LRC 8.0
No load current 10.0 A
Rated torque 66.8 ft.lb
Locked rotor torque 300 %
Breakdown torque 340 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 3.75 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
