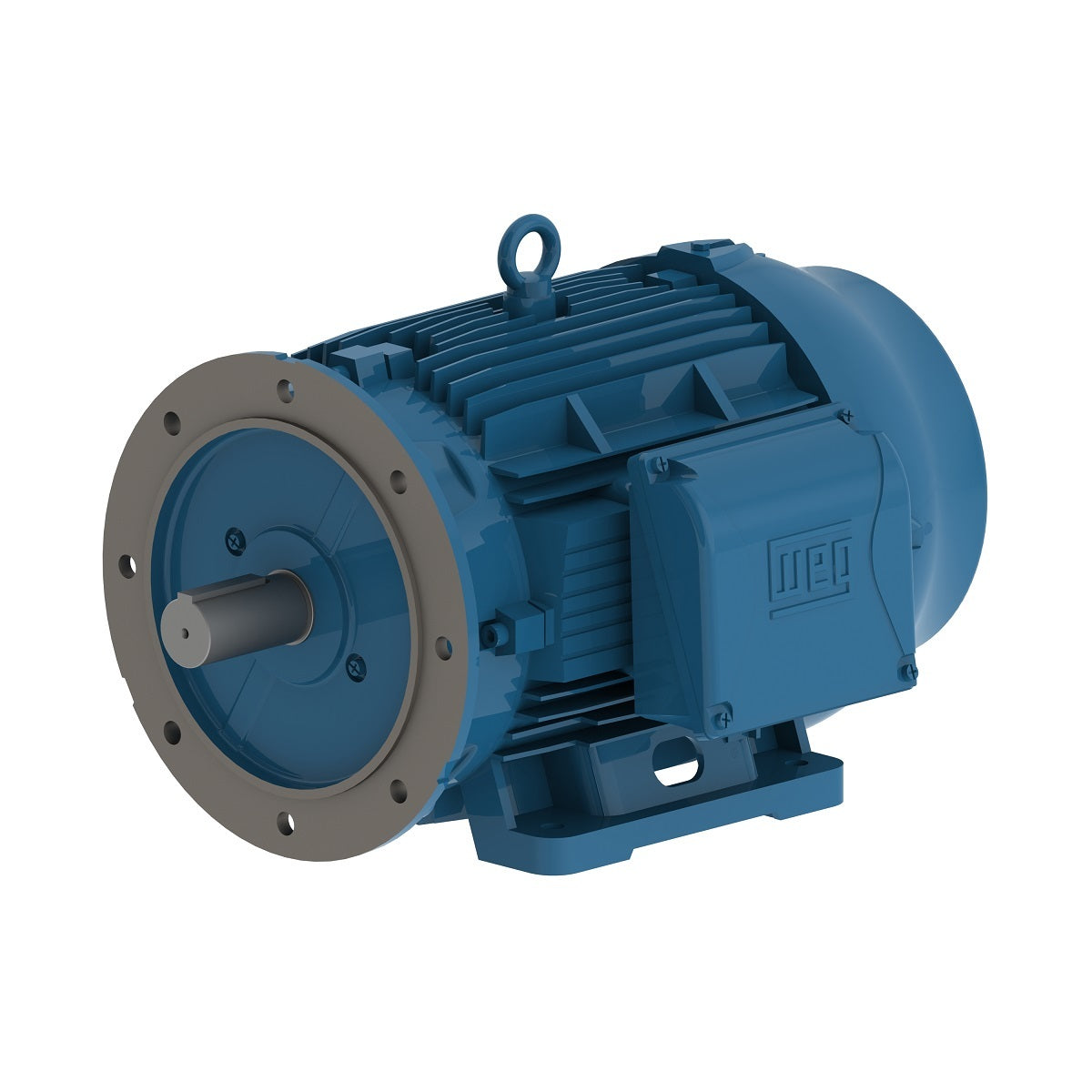

Weg Electric 01118ET3Y160MFF-W22, 15 Hp, 1800 Rpm, 160M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

01118ET3Y160MFF-W22, 15 Hp, 1800 Rpm, 160M Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange FF
Mounting B35L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 160M
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 18.2 A
L. R. Amperes 155 A
LRC 8.5
No load current 9.08 A
Rated torque 44.3 ft.lb
Locked rotor torque 300 %
Breakdown torque 330 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 2.38 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B35L(E)
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
