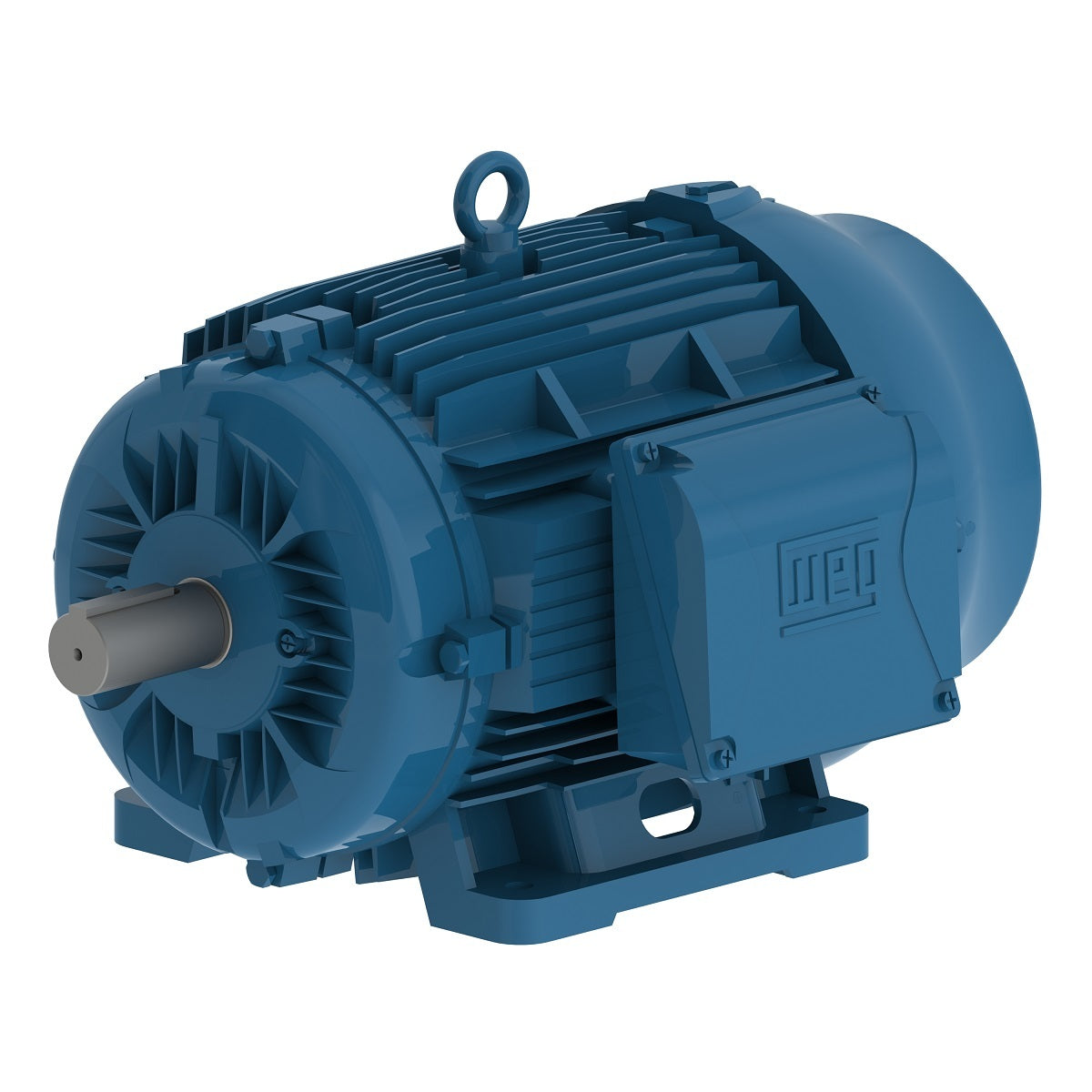

Weg Electric 01136ET3Y160M-W22, 15 HP, 160M Frame, 3600 RPM, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

01136ET3Y160M-W22, 15 HP, 160M Frame, 3600 RPM, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 160M
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 17.9 A
L. R. Amperes 161 A
LRC 9.0
No load current 8.00 A
Rated torque 22.1 ft.lb
Locked rotor torque 330 %
Breakdown torque 400 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.9943 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
