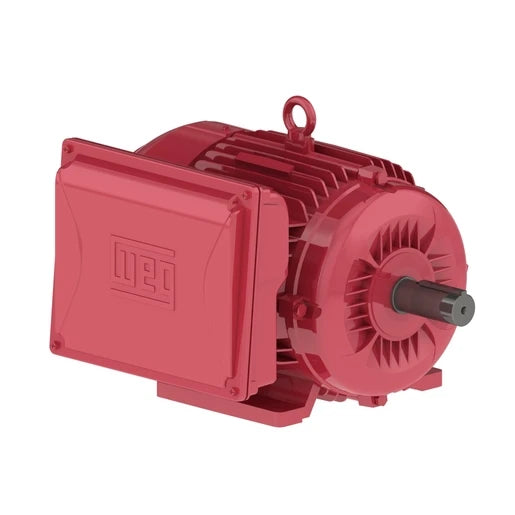

Weg Electric 01218ES1DFD215T-W22, 12.5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, W22, 14681029

Weg Electric 01218ES1DFD215T-W22, 12.5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, W22, 14681029

$1,681.21
$1,681.21
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01218ES1DFD215T-W22, 12.5 HP, 213/5T FR, 1Ph, 230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, W22, 14681029

SPECIFICATIONS

Frame 213/5T
Output 12.5 HP (9.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 230 V
Rated current 54.5 A
L. R. Amperes 436 A
LRC 8.0x(Code K)
No load current 27.0 A
Rated torque 37.7 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.29 sq.ft.lb
Insulation Class H
Service factor 1.15
Temperature rise 125 K
Starting Method Direct On Line
Duty Cycle Cont.(S1)
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 207 lb
