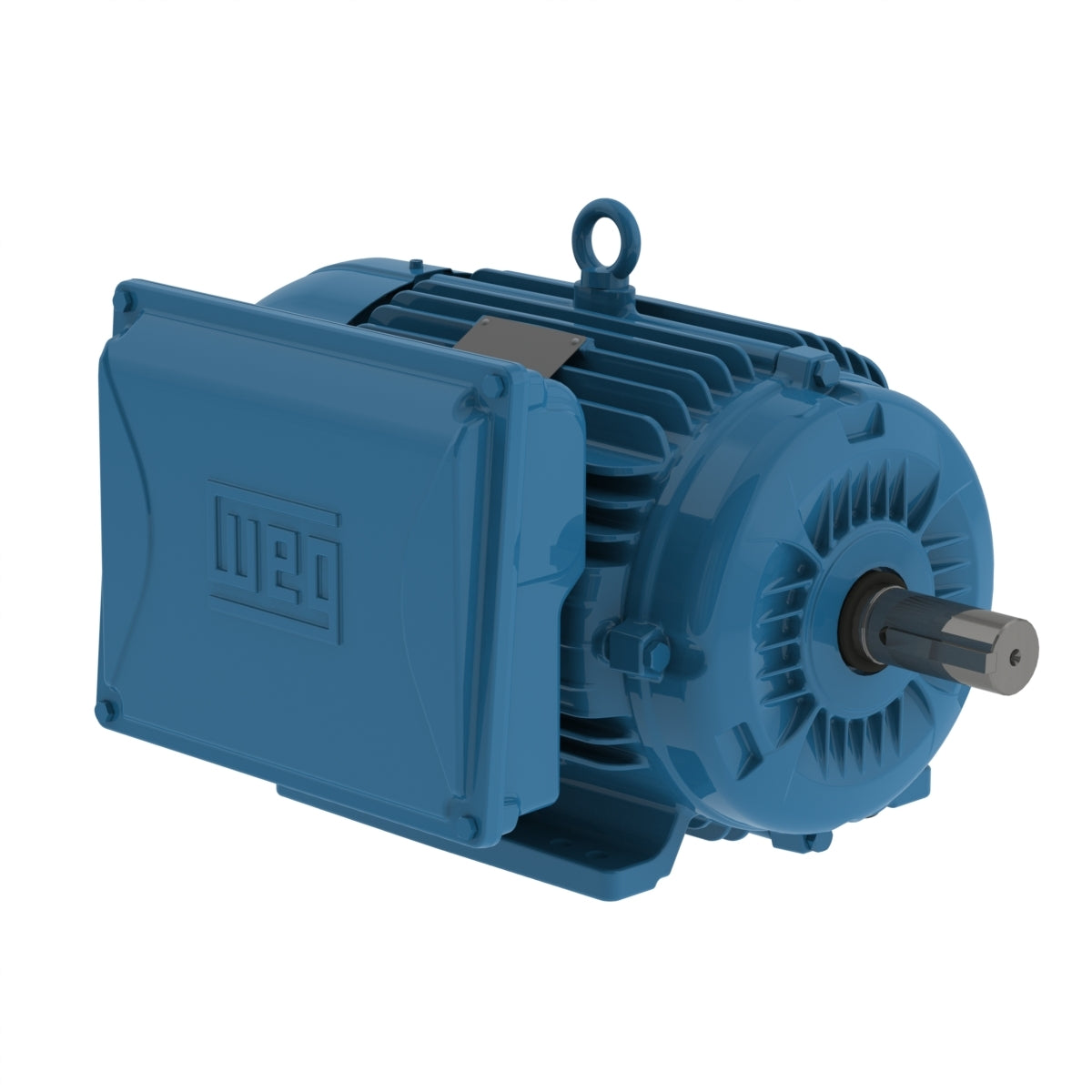

Weg Electric 01218ES1E215T-W22, 12 1/2 Hp, 1800 Rpm, 213/5T Frame, 208-230/460 Vac, TEFC, 1 Ph., Foot-mounted.

01218ES1E215T-W22, 12 1/2 Hp, 1800 Rpm, 213/5T Frame, 208-230/460 Vac, TEFC, 1 Ph., Foot-mounted.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 12.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 12.5 HP (9.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 208-230/460 V
Rated current 54.0-52.2/26.1 A
L. R. Amperes 405-392/196 A
LRC 7.5x(Code J)
No load current 15.6-18.1/9.05 A
Rated torque 5.21 kgfm
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0543 kgm²
Insulation Class H
Temperature rise 125 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
