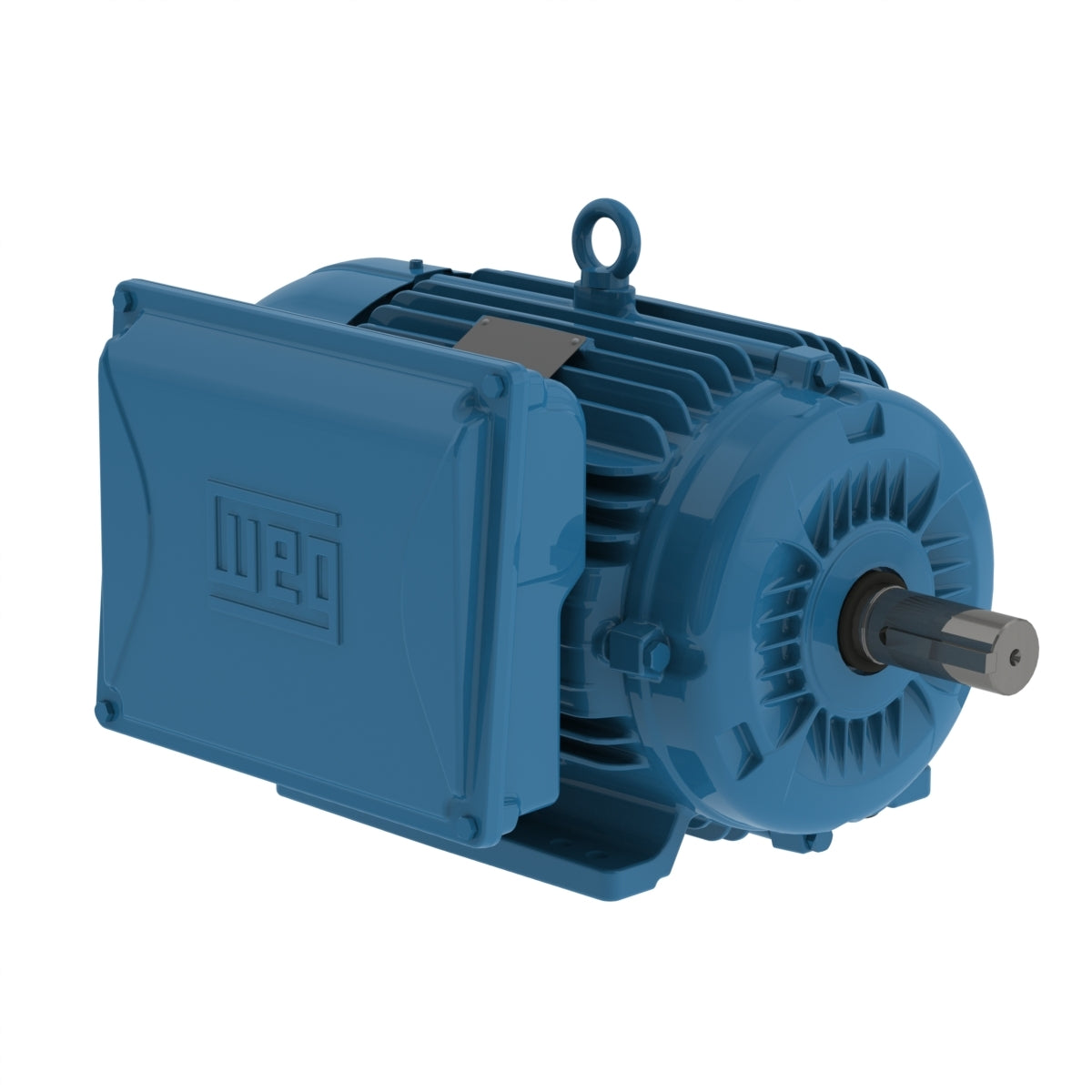

Weg Electric 01236ES1C215T-W22, 12 1/2 Hp, 3600 Rpm, 213/5T Frame, 208-230 Vac, TEFC, 1 PH, Foot-mounted.

01236ES1C215T-W22, 12 1/2 Hp, 3600 Rpm, 213/5T Frame, 208-230 Vac, TEFC, 1 PH, Foot-mounted.

Engineering Data

High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 12.5 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5T
Output 12.5 HP (9.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3510 rpm
Slip 2.50 %
Rated voltage 208-230 V
Rated current 51.8-46.1 A
L. R. Amperes 378-337 A
LRC 7.3x(Code G)
No load current 4.91-5.70 A
Rated torque 18.7 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.6763 sq.ft.lb
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
