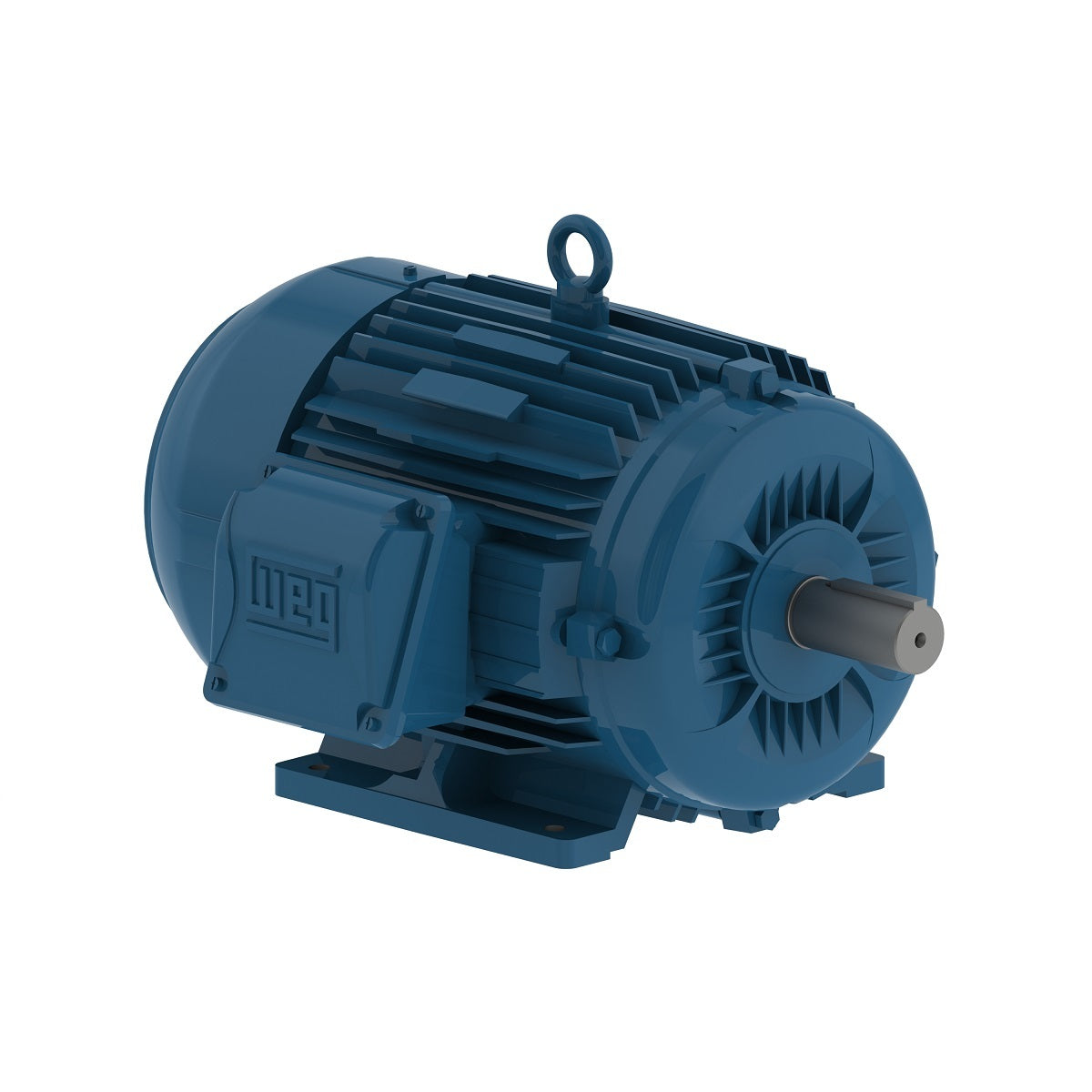

Weg Electric 01509ET3H286T-W22, 15 HP, 284/5T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

01509ET3H286T-W22, 15 HP, 284/5T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 284/6T
Output 15 HP (11 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 15.7 A
L. R. Amperes 86.2 A
LRC 5.5x(Code G)
No load current 7.84 A
Rated torque 89.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 8.18 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
