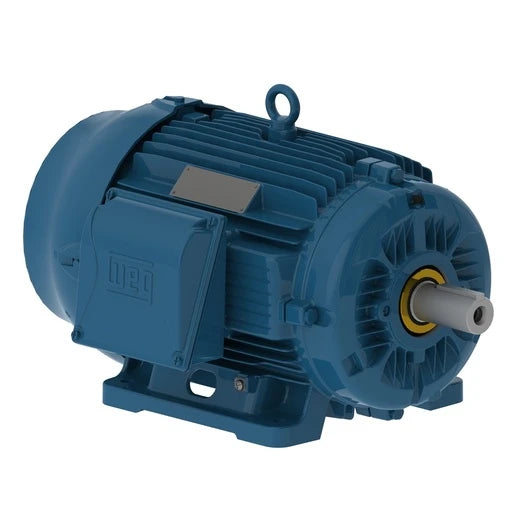

Weg Electric 01509ST3HIE286T-W22, 15 Hp, 900 Rpm, 284/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15344386

Weg Electric 01509ST3HIE286T-W22, 15 Hp, 900 Rpm, 284/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15344386

$6,000.38
$6,000.38
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01509ST3HIE286T-W22, 15 Hp, 900 Rpm, 284/6T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15344386

SPECIFICATIONS

Manufacturer Part Number 01509ST3HIE286T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 15HP 8P 284/6T WFF2
Type General Purpose
Horsepower 15 hp
Kilowatts 11.2 kW
Speed 900 RPM
Number of Poles 8
Phase 3
Frequency 60 Hz
NEMA Frame 280S/M
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 15.7 A
Service Factor 1
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Bearing Type Ball
Shaft Diameter 2.95 "
Overload Protection None
Length 45 "
Approvals cCSAus, cULus
Net Weight 457.985 lbs
Gross Weight 457.985 lbs



View full details

Attachments
