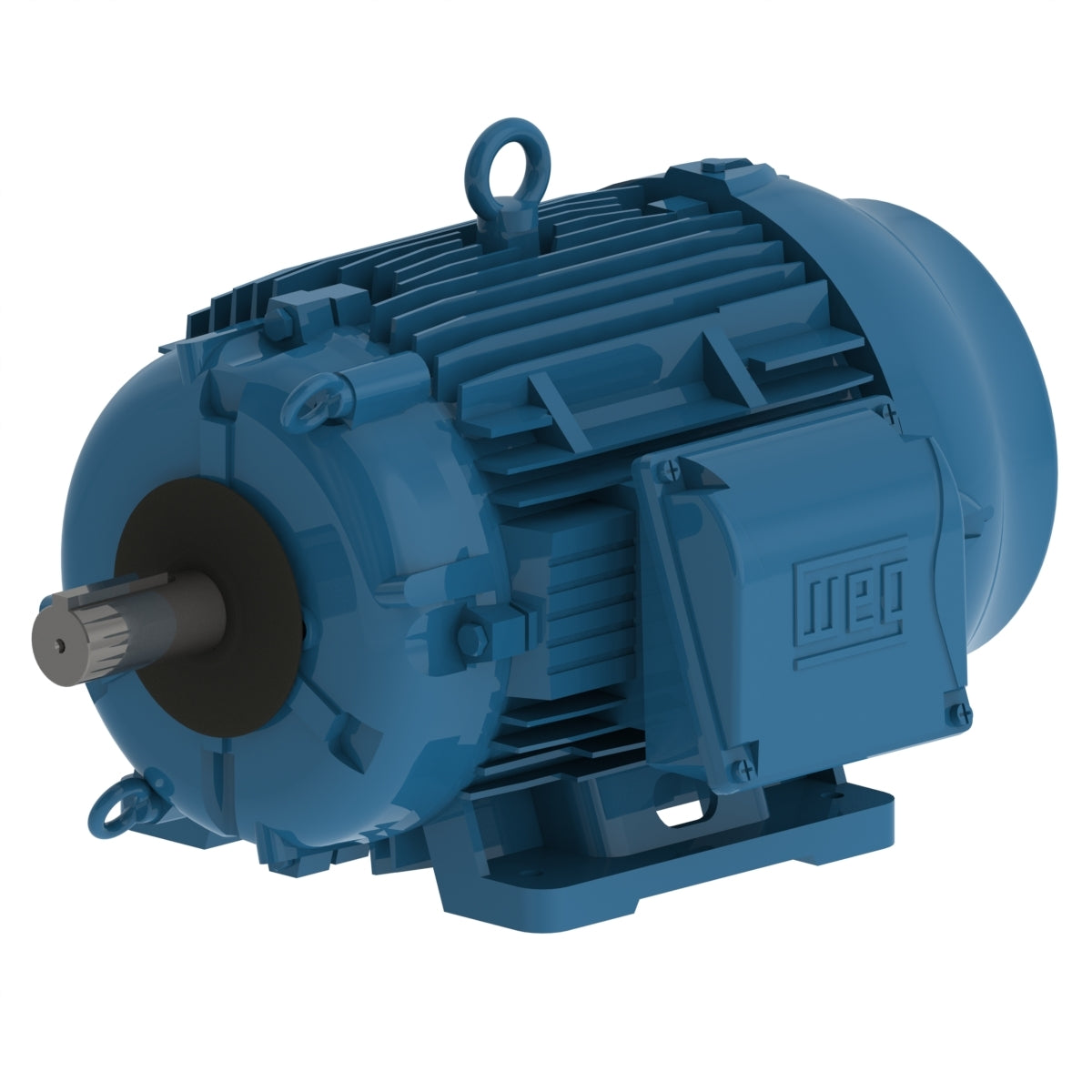

Weg Electric 01512ET3PCT284T-W22, 15 Hp, 1200 Rpm, 284/6T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

01512ET3PCT284T-W22, 15 Hp, 1200 Rpm, 284/6T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 284T
Output 15 HP (11 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 200 V
Rated current 41.2 A
L. R. Amperes 263 A
LRC 6.4x(Code G)
No load current 16.1 A
Rated torque 67.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 7.85 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
