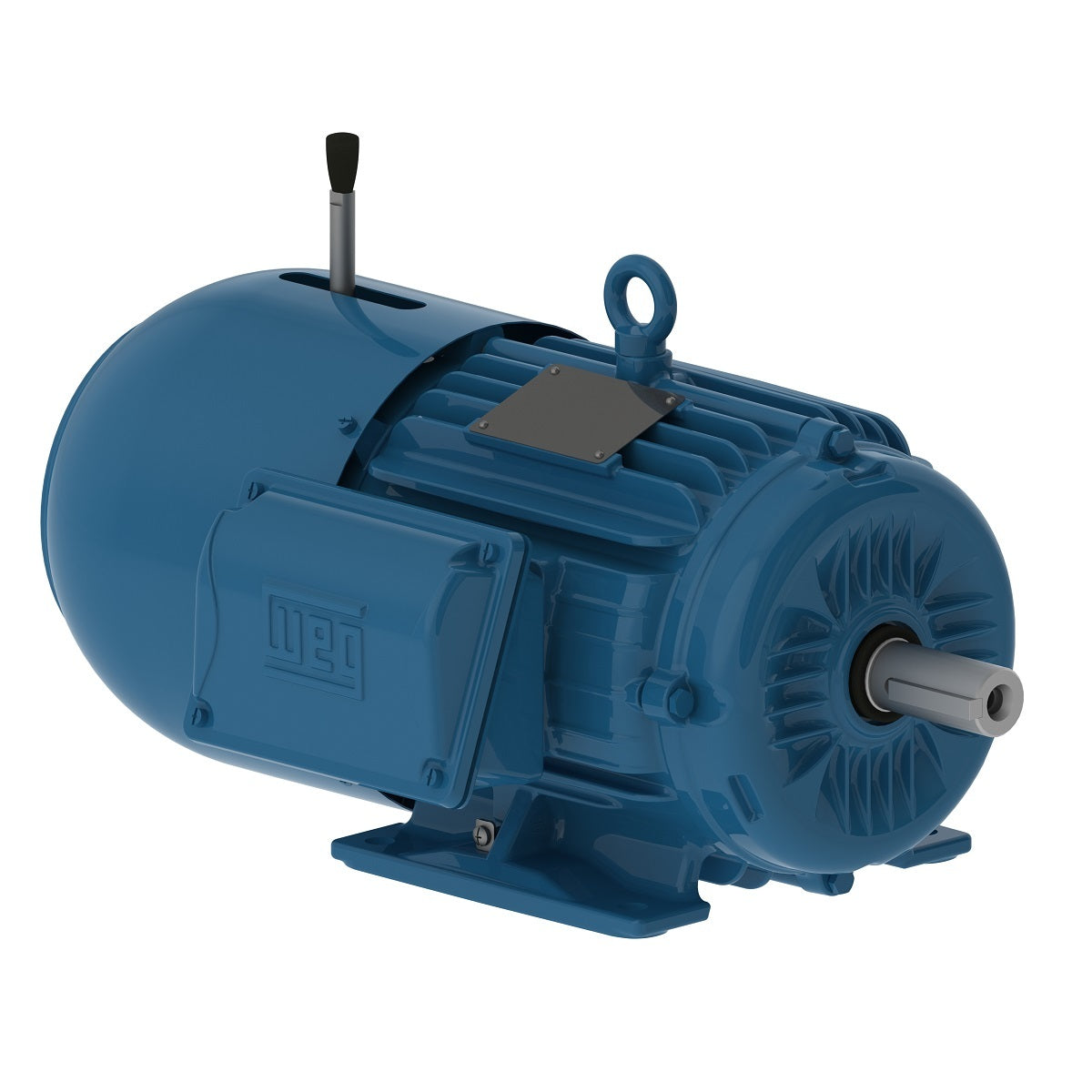

Weg Electric 01518ET3EBM254T-W22, 15 Hp, 1800 Rpm, 254/6T Frame, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor NEMA Premium Efficiency.

01518ET3EBM254T-W22, 15 Hp, 1800 Rpm, 254/6T Frame, 230/460 Vac, TEFC, 3 PH, Foot-mounted, Brake Motor NEMA Premium Efficiency.

Engineering Data

The W22 Brake Motor is the ideal motor for applications that require immediate, accurate and safe stops, and position control. They meet the needs of different applications, such as load elevators, hoists, shears, machining equipment, looms, packaging machines, conveyors, washing and bottling machines, bending machines, among others.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 36.0/18.0 A
L. R. Amperes 230/115 A
LRC 6.4x(Code G)
No load current 14.4/7.20 A
Rated torque 44.5 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
