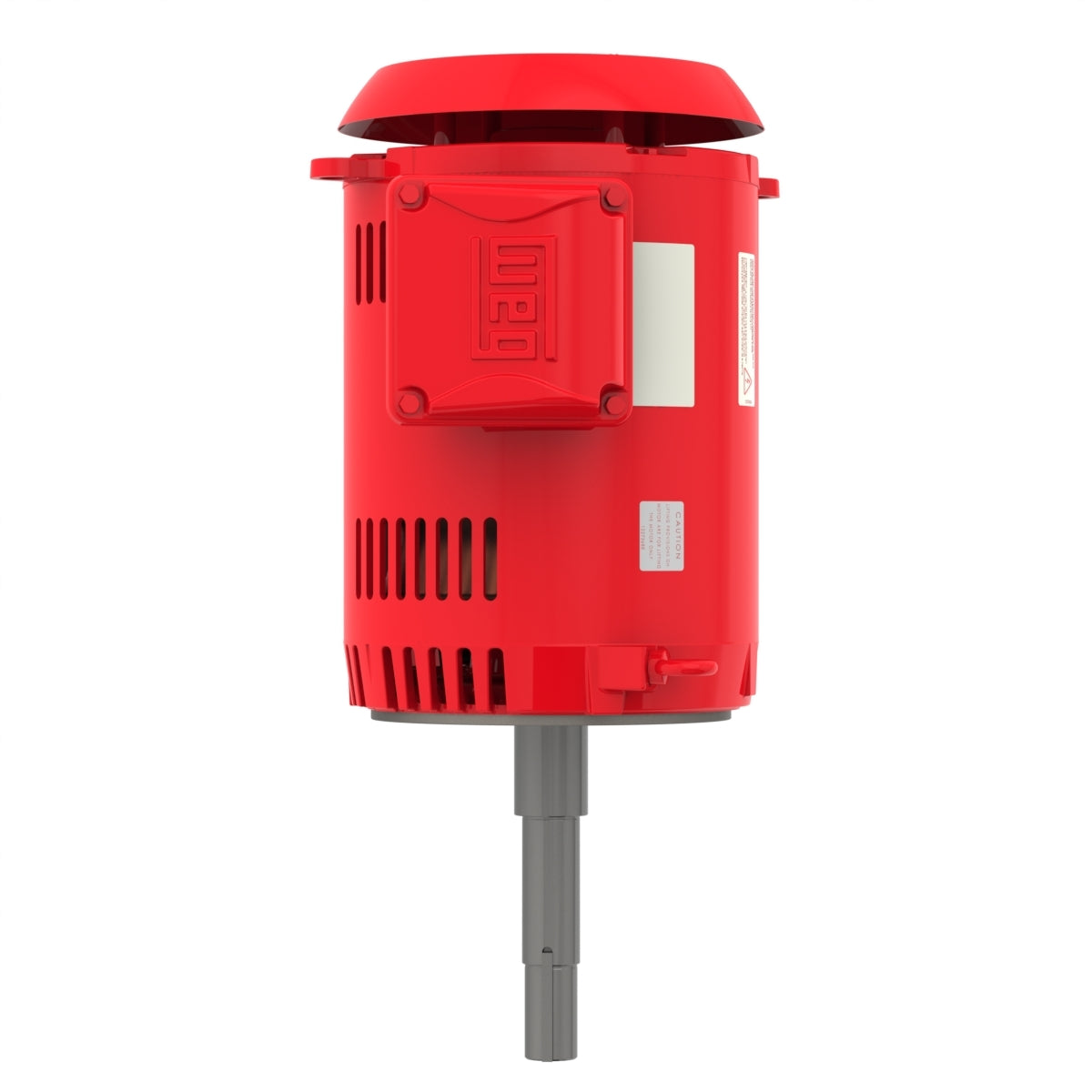

Weg Electric 01518OP3EFP254JPV-S, 15 Hp, 1800 Rpm, 254/6JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency.

01518OP3EFP254JPV-S, 15 Hp, 1800 Rpm, 254/6JP Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency.

Engineering Data

The W01 “JP” (gasket) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 15 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 254/6JP
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 37.0/18.5 A
L. R. Amperes 222/111 A
LRC 6.0x(Code G)
No load current 16.9/8.47 A
Rated torque 44.5 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 1.22 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
