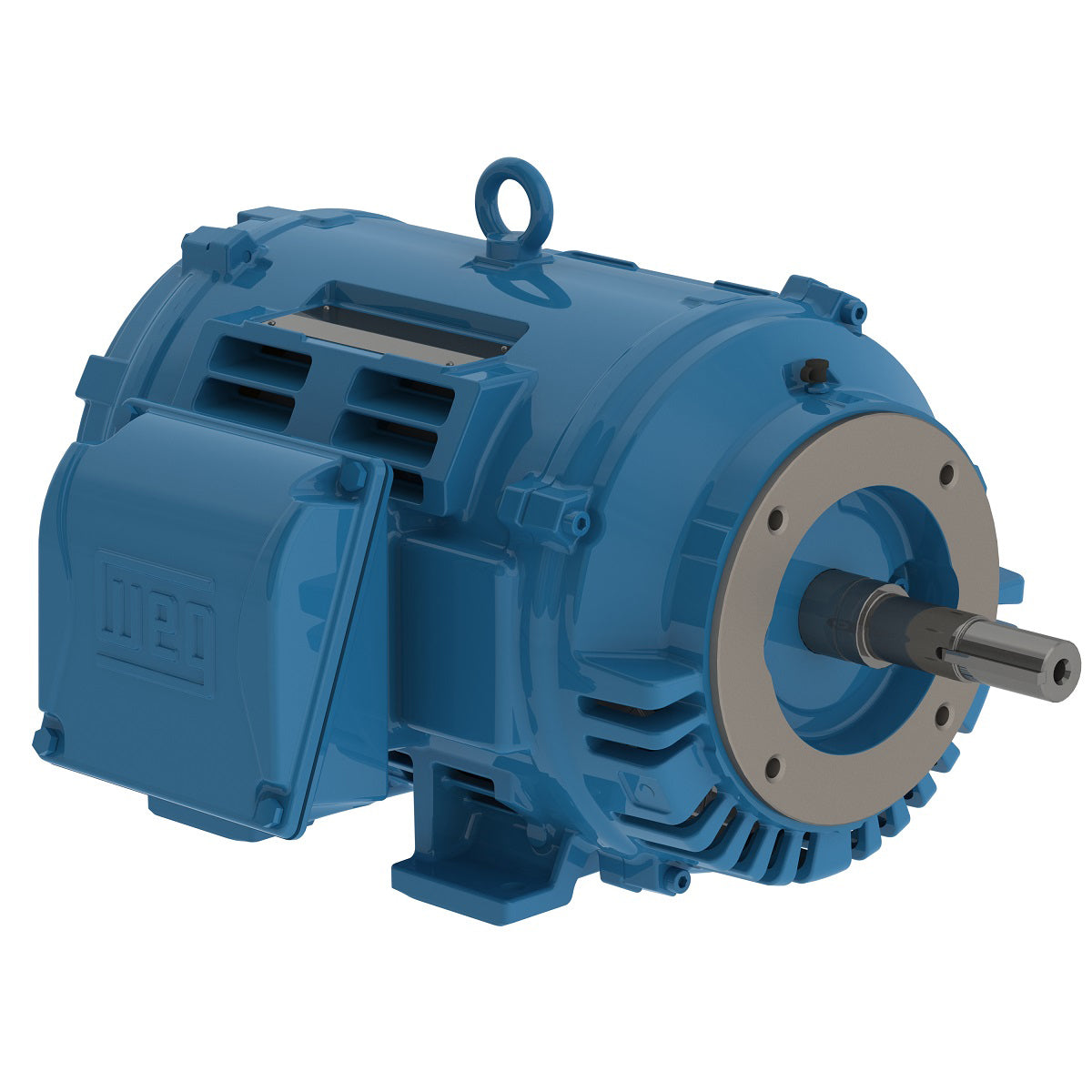

Weg Electric 01518OT3H254JM-W40, 15 Hp, 254JM Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency, 14483248

Weg Electric 01518OT3H254JM-W40, 15 Hp, 254JM Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency, 14483248

$1,775.55
$1,775.55
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01518OT3H254JM-W40, 15 Hp, 254JM Frame, 1800 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency, 14483248

SPECIFICATIONS

Frame 254JM
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 575 V
Rated current 14.0 A
L. R. Amperes 89.6 A
LRC 6.4x(Code G)
No load current 5.44 A
Rated torque 44.4 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 61s (cold) 34s (hot)
Moment of inertia (J) 2.72 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 252 lb
