Industrial Motors

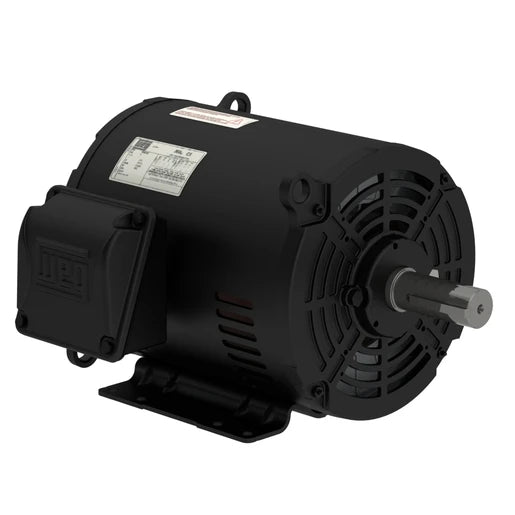

Weg Electric 01518OT3P254T-SGH, 15 Hp, 1800 Rpm, 254/6T Frame, 200 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 15378602

Weg Electric 01518OT3P254T-SGH, 15 Hp, 1800 Rpm, 254/6T Frame, 200 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 15378602

$1,720.37
$1,720.37
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01518OT3P254T-SGH, 15 Hp, 1800 Rpm, 254/6T Frame, 200 Vac, ODP, 3 PH, Foot-Mounted, ROLLED STEEL NEMA Premium Efficiency, 15378602

SPECIFICATIONS

Frame 254/6T
Output 15 HP (11 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 200 V
Rated current 42.8 A
L. R. Amperes 287 A
LRC 6.7x(Code H)
No load current 21.9 A
Rated torque 44.4 ft.lb
Locked rotor torque 240 %
Breakdown torque 300 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 1.82 sq.ft.lb
Design B
Insulation Class H
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
Approx. weight³ 190 lb
