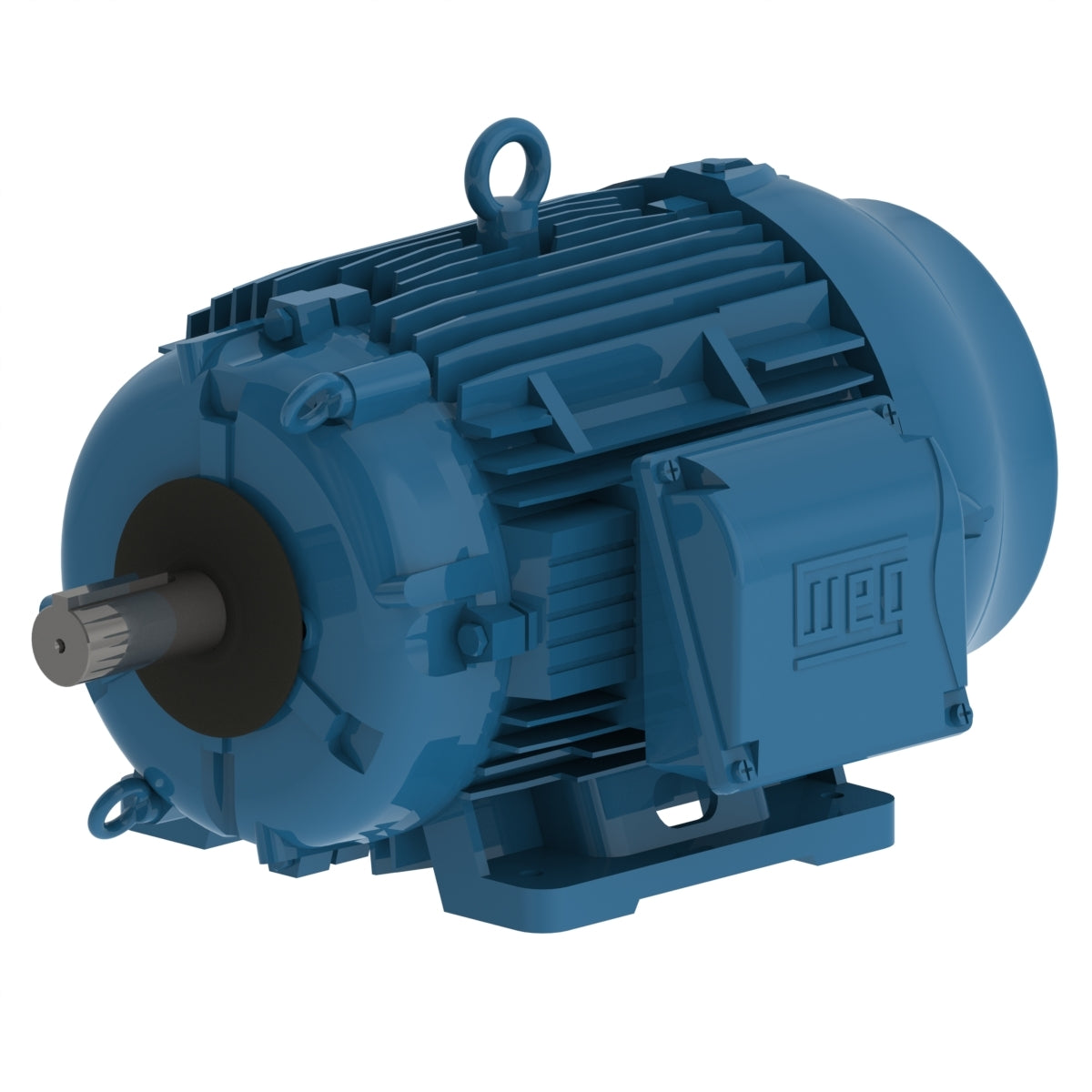

Weg Electric 01526EP3PCT286V-W22, 3 3/4 Hp, 600/1200 Rpm, 284/6T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

01526EP3PCT286V-W22, 3 3/4 Hp, 600/1200 Rpm, 284/6T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, Cooling Tower High Efficiency.

Engineering Data

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 3.75/15 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 284/6T
Output 3.75 HP (2.8 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 580 rpm
Slip 3.33 %
Rated voltage 200 V
Rated current 14.8 A
L. R. Amperes 48.9 A
LRC 3.3x(Code E)
No load current 9.20 A
Rated torque 34.0 ft.lb
Locked rotor torque 130 %
Breakdown torque 180 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
