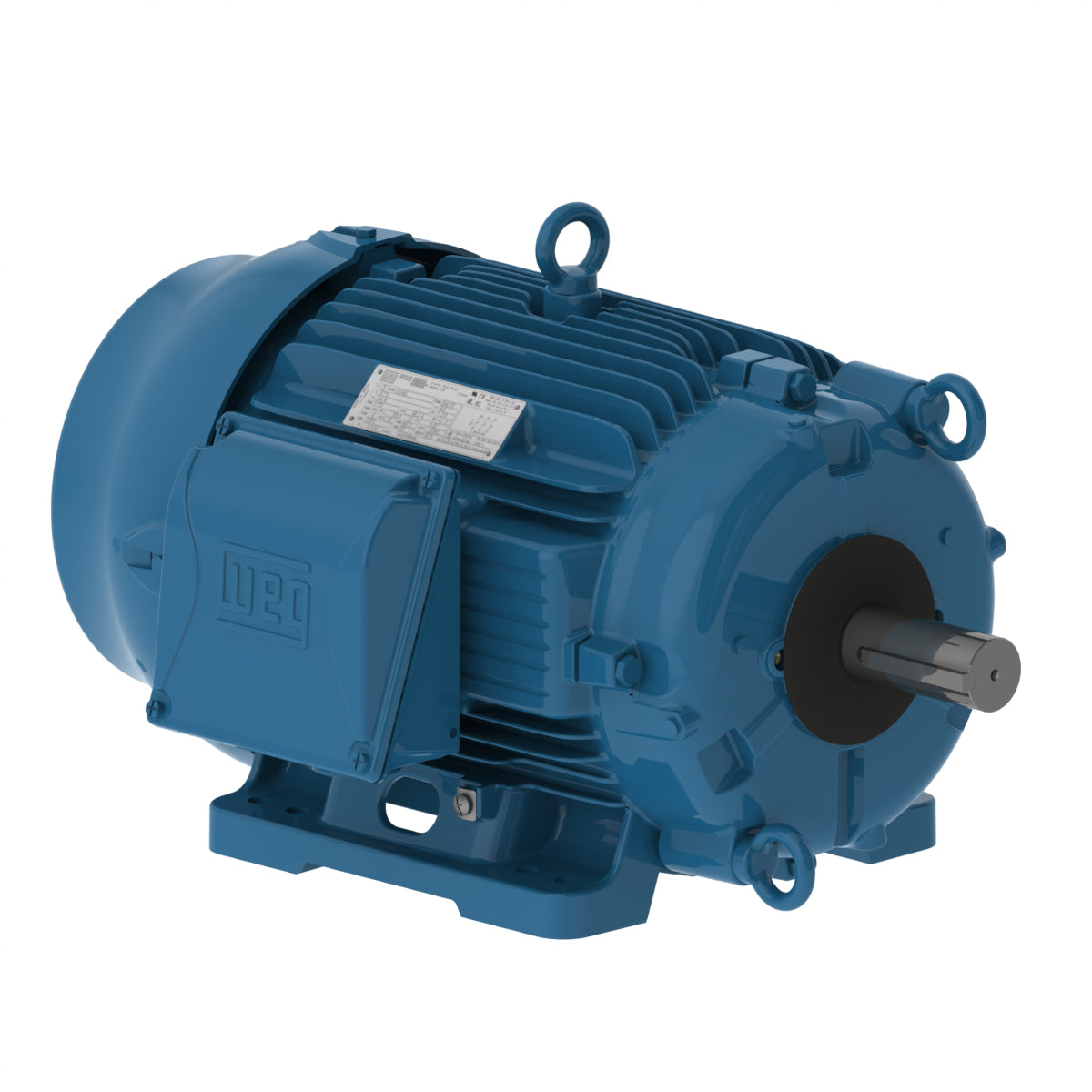

Weg Electric 01526EP3PCT286VF1-W2, 3 3/4 Hp, 600/1200 Rpm, 284/6T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

01526EP3PCT286VF1-W2, 3 3/4 Hp, 600/1200 Rpm, 284/6T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 3.75/15 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 284/6T
Output 3.75 HP (2.8 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 580 rpm
Slip 3.33 %
Rated voltage 200 V
Rated current 14.8 A
L. R. Amperes 48.9 A
LRC 3.3x(Code E)
No load current 9.20 A
Rated torque 34.0 ft.lb
Locked rotor torque 130 %
Breakdown torque 180 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
