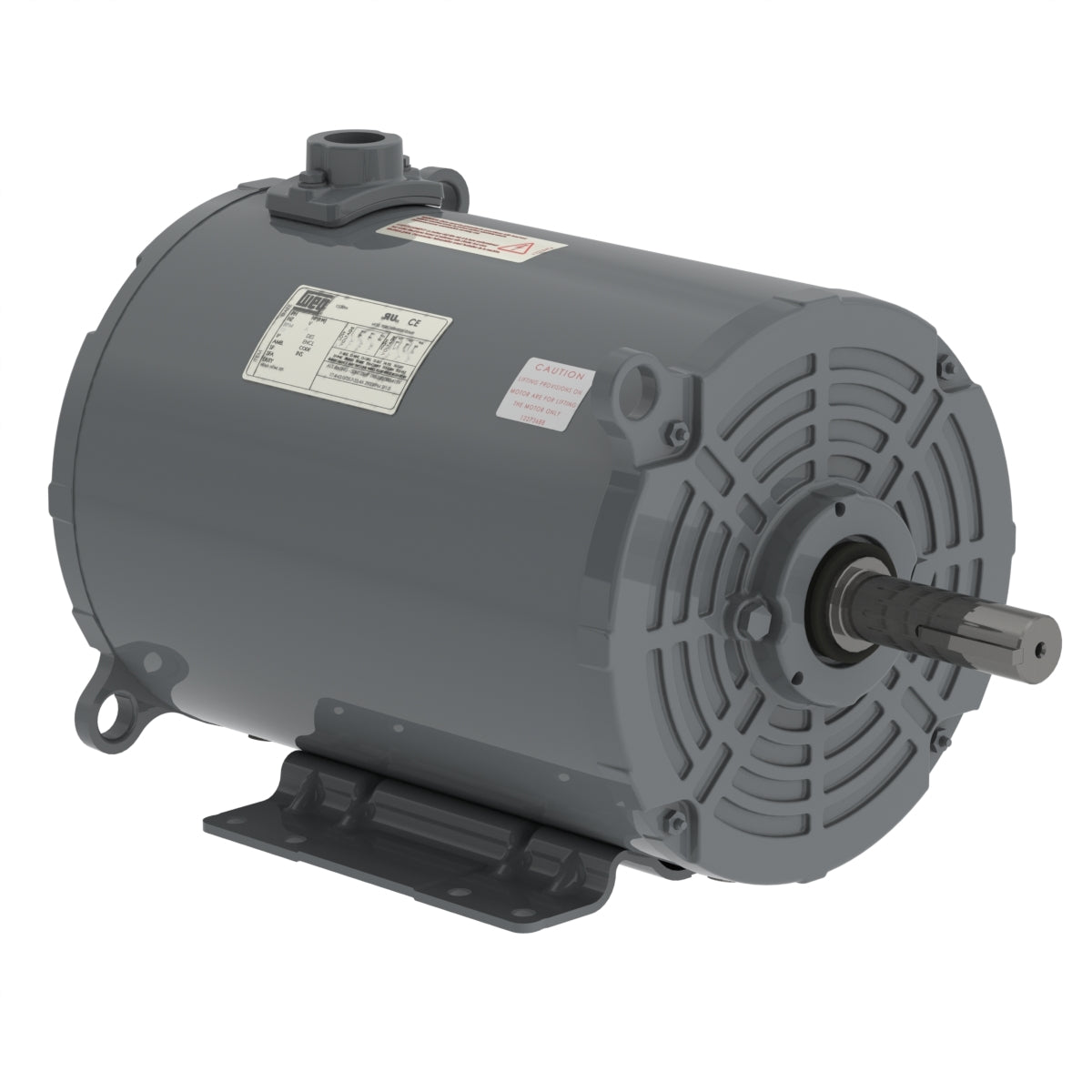

Weg Electric 01536AP3EGD215TZ-S, 10 Hp, 3000 Rpm, 213/5TZ Frame, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

01536AP3EGD215TZ-S, 10 Hp, 3000 Rpm, 213/5TZ Frame, 208-230/460 Vac, TEAO, 3 PH, Foot-mounted, Rolled Steel Grain Dryer Standard Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 10-15 HP
Mounting Foot-mounted
Flange Without
Mounting F-3
Terminal box¹ Top
Enclosure IC410 - TEAO

Frame 213/5TZ
Output 10 HP (7.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 27.0-24.4/12.2 A
L. R. Amperes 197-178/89.1 A
LRC 7.3x(Code H)
No load current 13.7-12.4/6.20 A
Rated torque 14.8 ft.lb
Locked rotor torque 350 %
Breakdown torque 459 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.6787 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC410 - TEAO
Mounting F-3
Rotation¹ CCW
Noise level² 70.0 dB(A)
