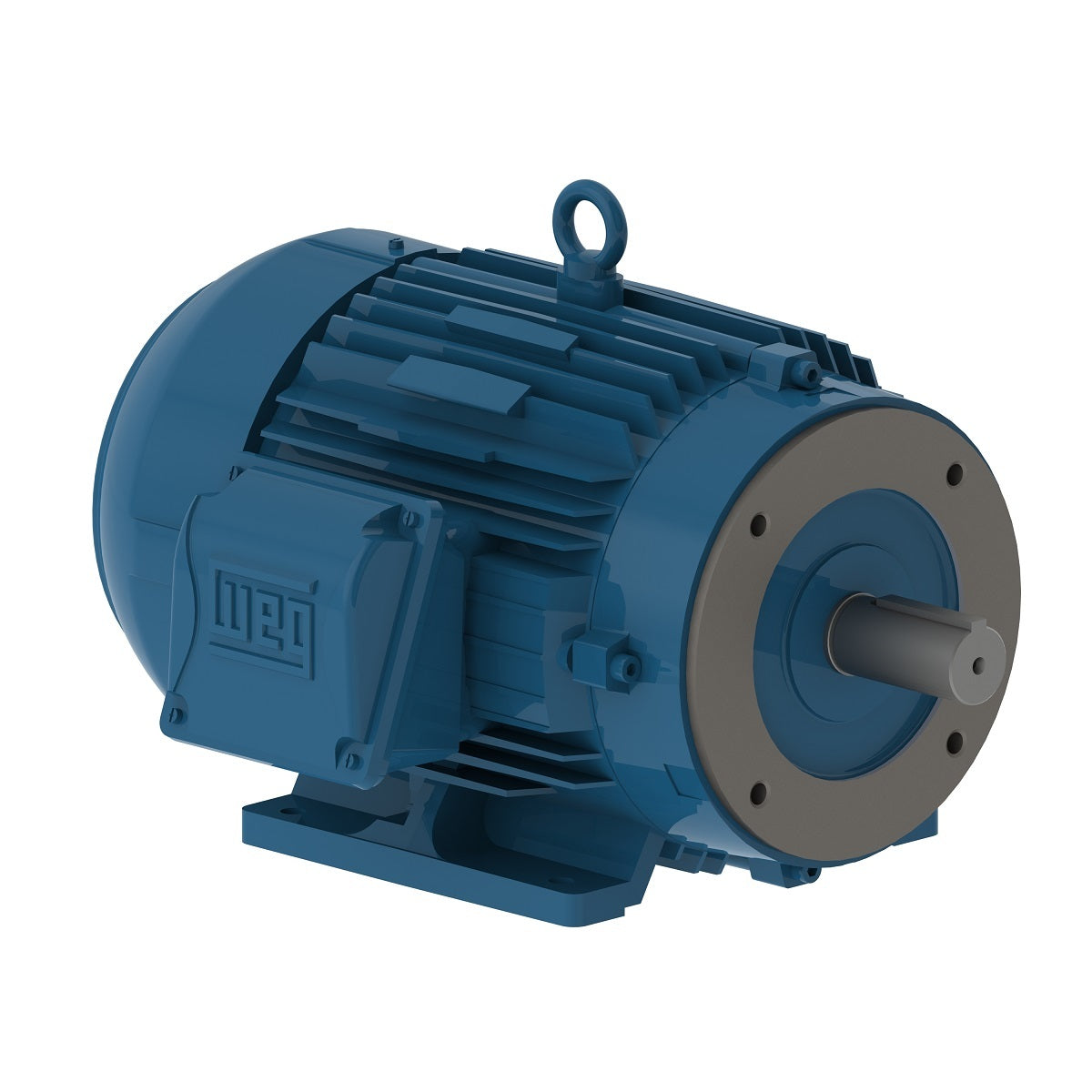

Weg Electric 01536ET3E215TC-W22, 15 Hp, 3600 Rpm, 213/5TC Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

01536ET3E215TC-W22, 15 Hp, 3600 Rpm, 213/5TC Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 208-230/460 V
Rated current 37.7-34.1/17.0 A
L. R. Amperes 302-273/136 A
LRC 8.0x(Code J)
No load current 12.2-11.0/5.50 A
Rated torque 22.4 ft.lb
Locked rotor torque 260 %
Breakdown torque 330 %
Locked rotor time 21s (cold) 12s (hot)
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
