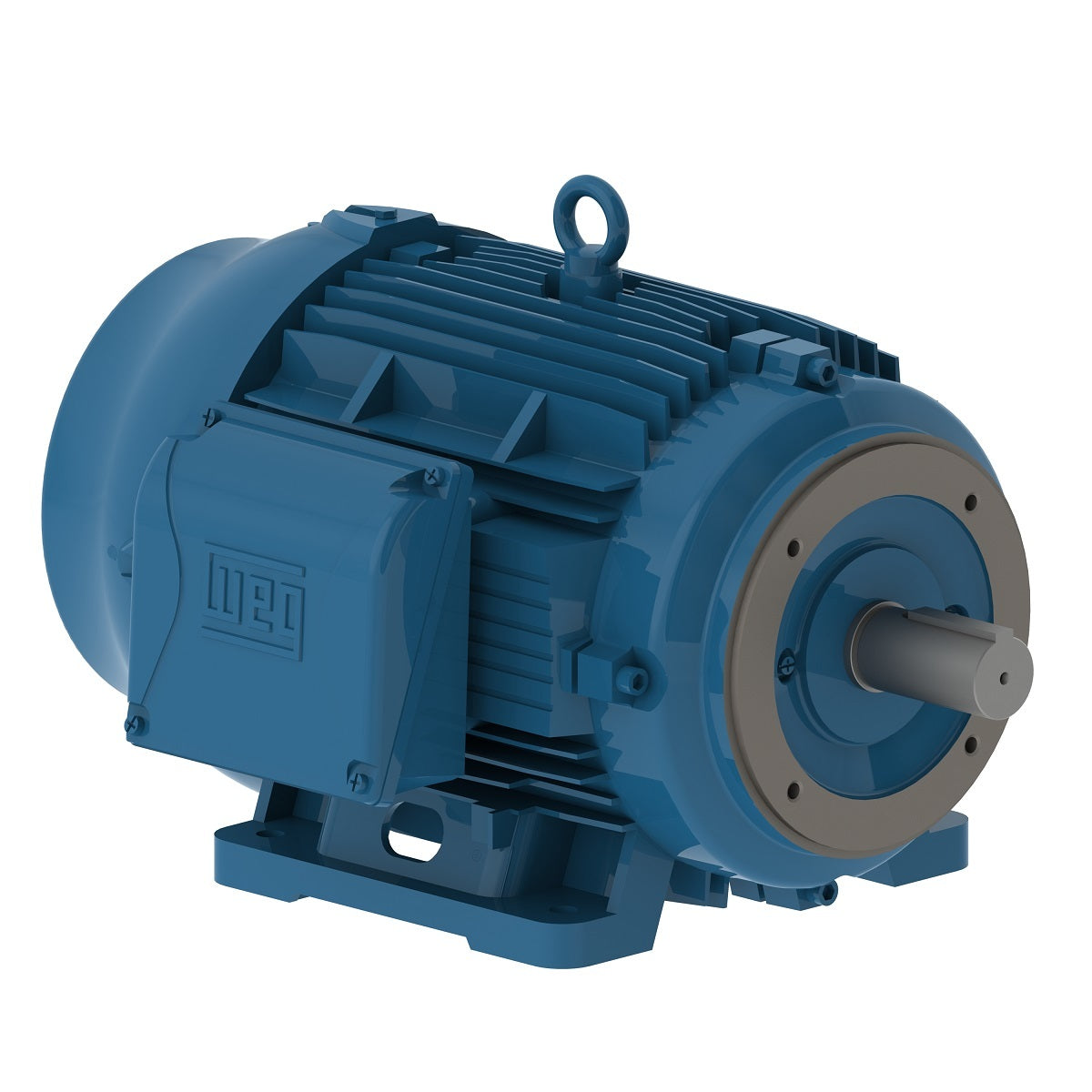

Weg Electric 01536ET3E254TC-W22, 15 Hp, 3600 Rpm, 254/6TC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

01536ET3E254TC-W22, 15 Hp, 3600 Rpm, 254/6TC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254/6TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 230/460 V
Rated current 34.4/17.2 A
L. R. Amperes 230/115 A
LRC 6.7x(Code G)
No load current 9.20/4.60 A
Rated torque 22.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 270 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 1.26 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
