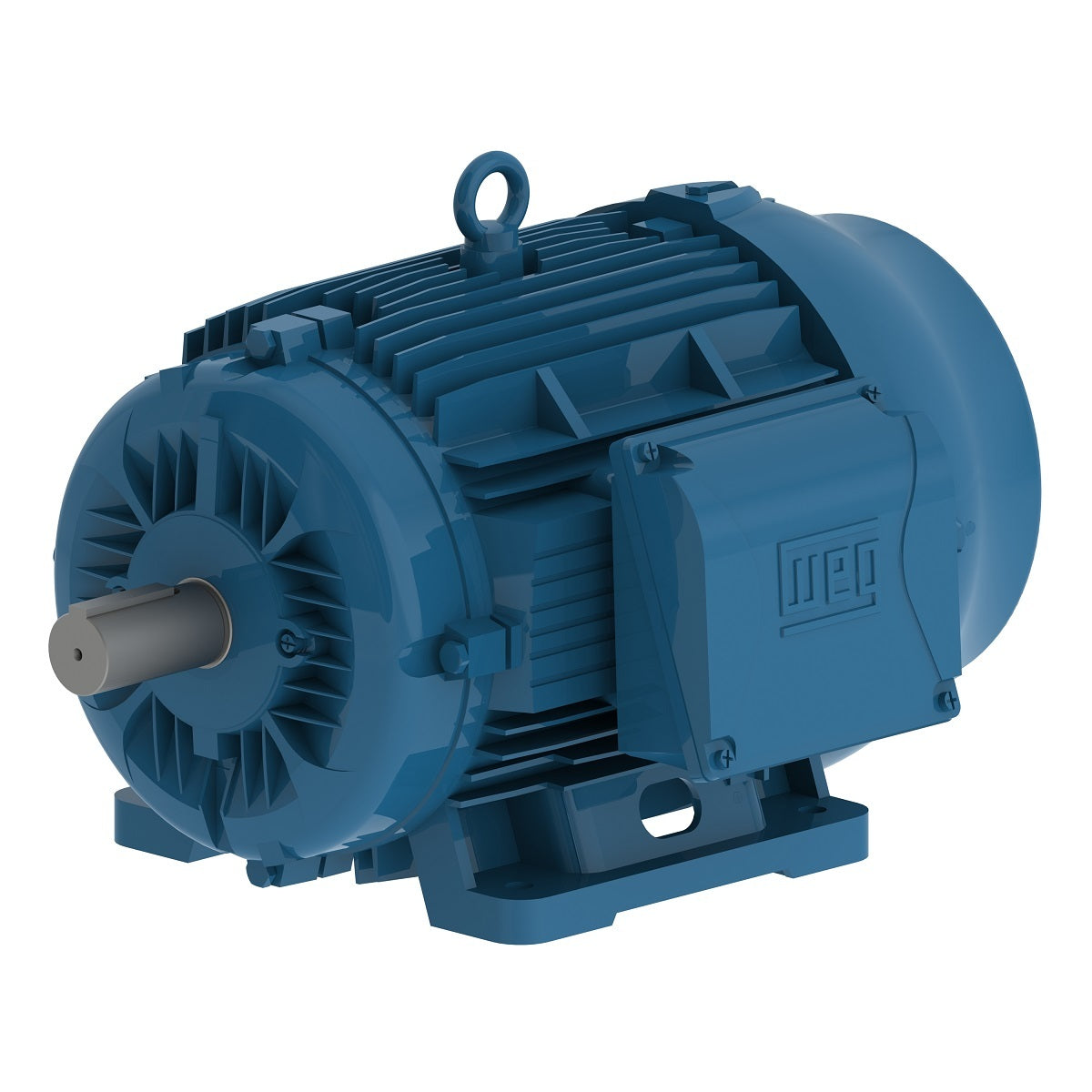

Weg Electric 01536ET3H254TF2-W22, 15 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

01536ET3H254TF2-W22, 15 Hp, 3600 Rpm, 254/6T Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC
