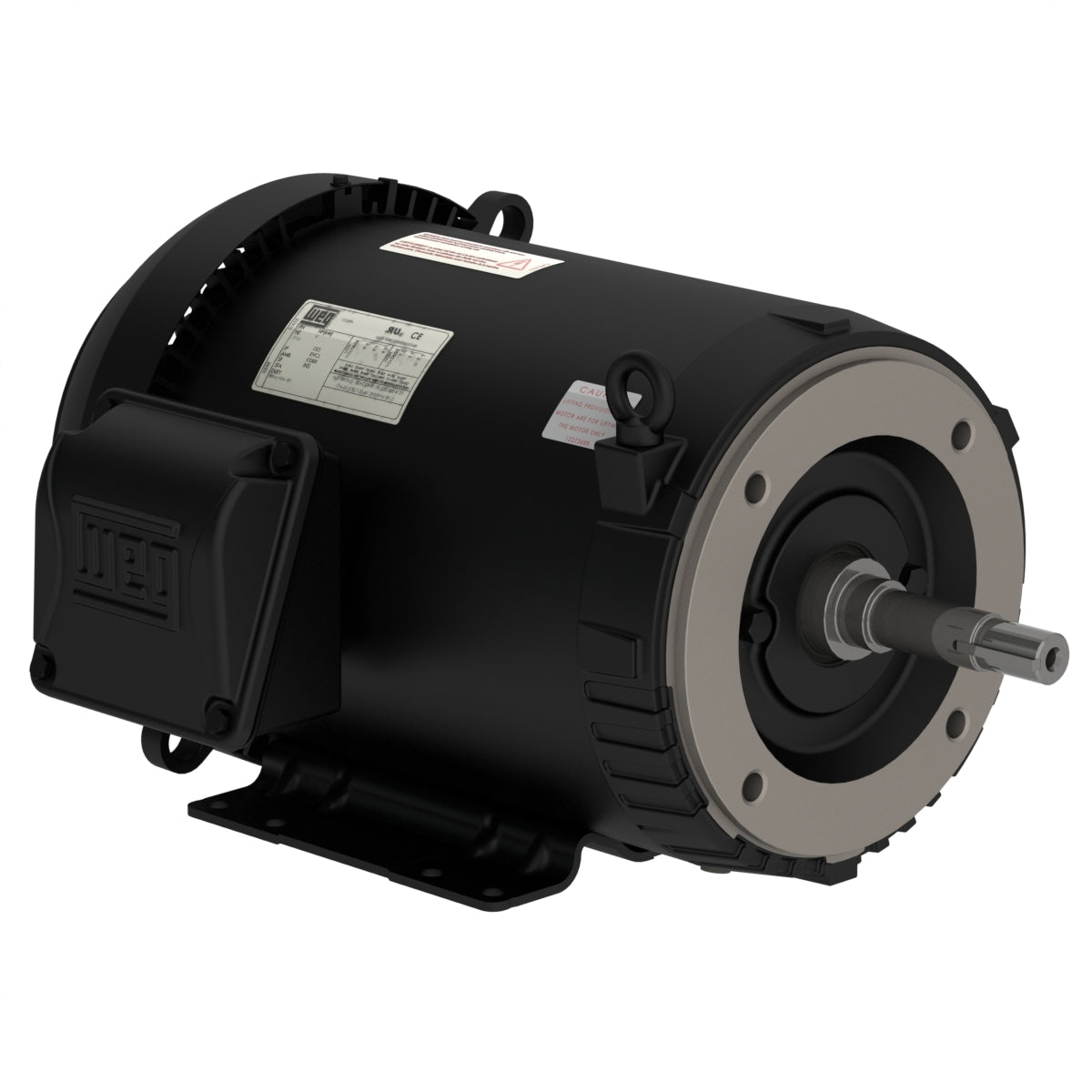

Weg Electric 01536ET3V215JM-S, 15 Hp, 213/5JM Frame, 3600 RPM, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

01536ET3V215JM-S, 15 Hp, 213/5JM Frame, 3600 RPM, 200/400 Vac, TEFC, 3 PH, Foot-mounted, Rolled Steel JM Pump NEMA Premium Efficiency.

Engineering Data

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 213/5JM
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 200/400 V
Rated current 39.1/19.6 A
L. R. Amperes 321/160 A
LRC 8.2x(Code J)
No load current 14.3/7.13 A
Rated torque 3.08 kgfm
Locked rotor torque 280 %
Breakdown torque 330 %
Locked rotor time 12s (cold) 7s (hot)
Moment of inertia (J) 0.0267 kgm²
Design A
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
