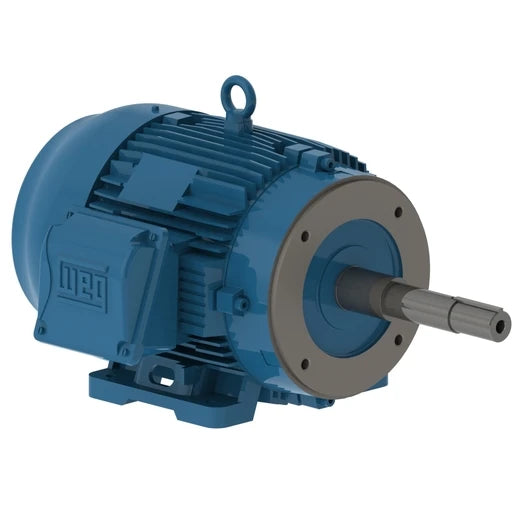

Weg Electric 01536ET3V254JP-W22, 15 Hp, 254/6JP Frame, 3600 RPM, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency, 14318123

Weg Electric 01536ET3V254JP-W22, 15 Hp, 254/6JP Frame, 3600 RPM, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency, 14318123

$2,339.81
$2,339.81
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01536ET3V254JP-W22, 15 Hp, 254/6JP Frame, 3600 RPM, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency, 14318123

SPECIFICATIONS

Frame 254/6JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 200-208/400 V
Rated current 39.7-38.0/19.8 A
L. R. Amperes 266-255/133 A
LRC 6.7x(Code G)
No load current 11.5-8.62/5.75 A
Rated torque 22.3 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 1.26 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
Approx. weight³ 236 lb
