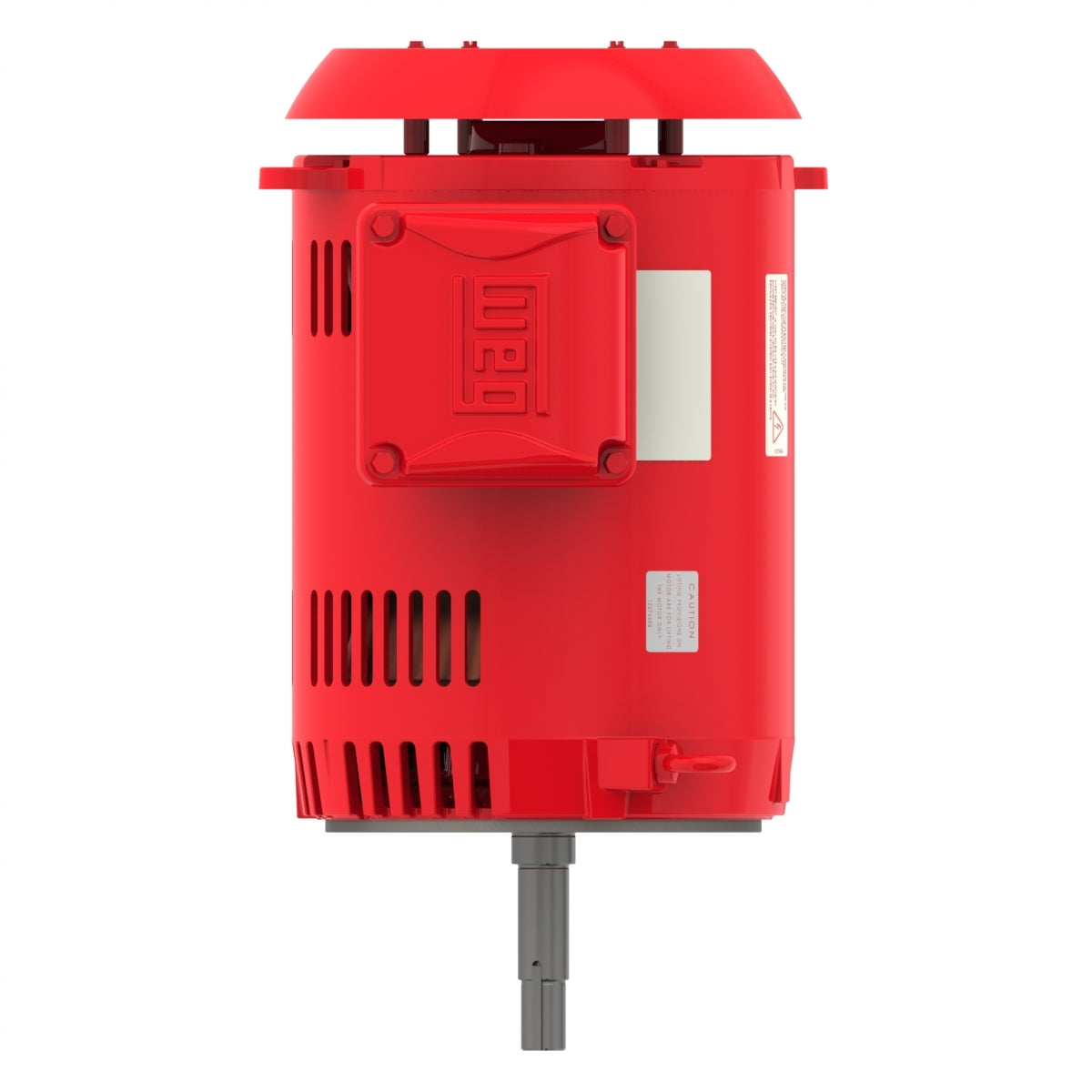

Weg Electric 01536OP3EFP215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.

01536OP3EFP215JMV-S, 15 Hp,3600 Rpm, 213/5JM Frame, 230/460//190-220/380-415 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump High Efficiency.

Engineering Data

The W01 “JM” (mechanical seal) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JM
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 35.0/17.5 A
L. R. Amperes 228/114 A
LRC 6.5x(Code G)
No load current 14.7/7.36 A
Rated torque 22.3 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
