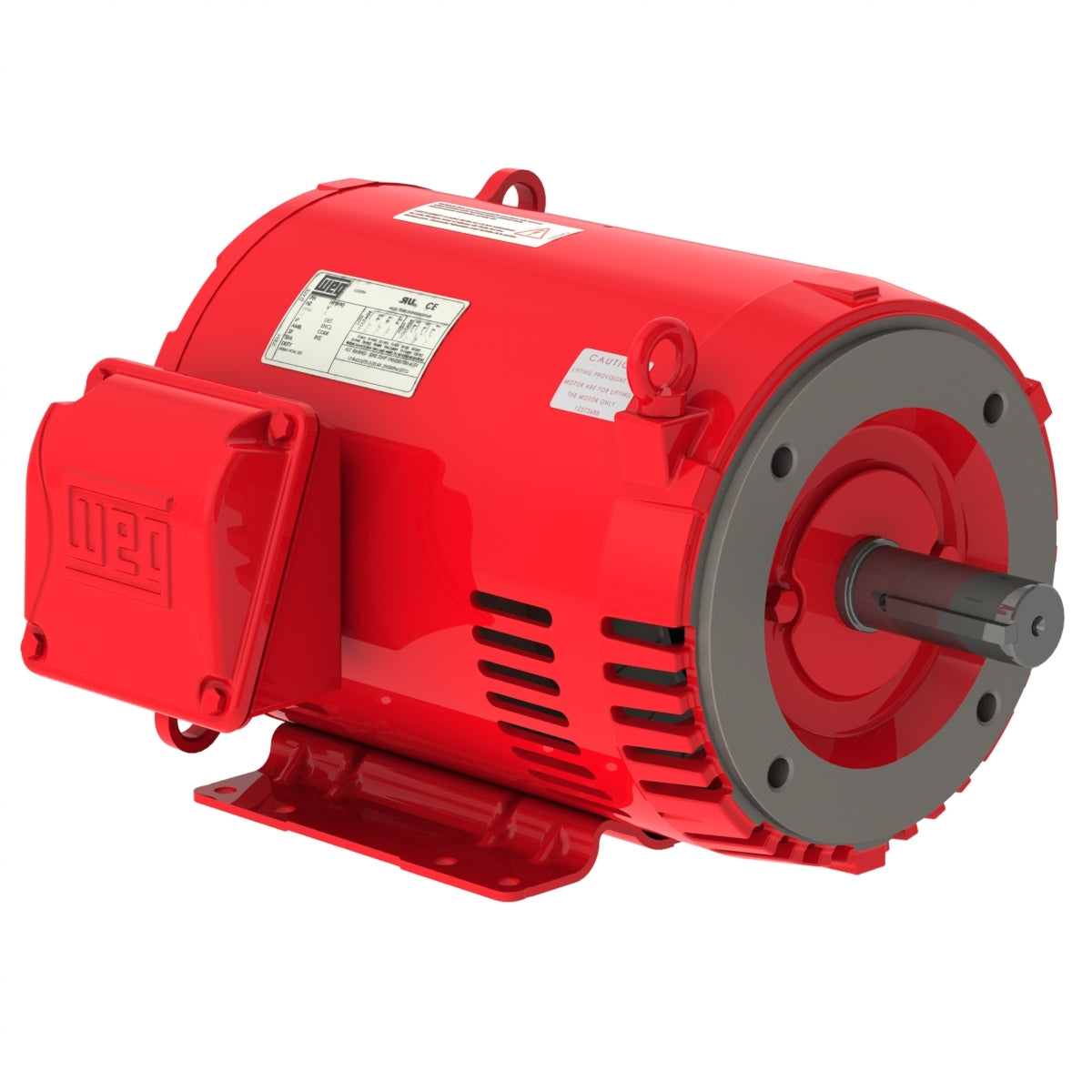

Weg Electric 01536OP3EFP215TC-S, 15 Hp, 3600 Rpm, 213/5TC Frame, 230/460/220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JP Pump High Efficiency.

01536OP3EFP215TC-S, 15 Hp, 3600 Rpm, 213/5TC Frame, 230/460/220/380-415 Vac, ODP, 3 PH, Foot-mounted, Rolled Steel JP Pump High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5TC
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3525 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 35.0/17.5 A
L. R. Amperes 228/114 A
LRC 6.5x(Code G)
No load current 14.7/7.36 A
Rated torque 22.3 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
