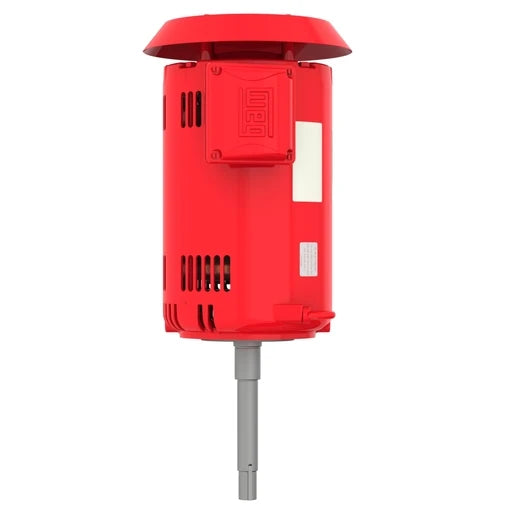

Weg Electric 01536OP3VFP215JPV-S, 15 Hp, 3600 Rpm, 213/5JP FR, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency, 13550933

Weg Electric 01536OP3VFP215JPV-S, 15 Hp, 3600 Rpm, 213/5JP FR, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency, 13550933

$1,439.13
$1,439.13
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 01536OP3VFP215JPV-S, 15 Hp, 3600 Rpm, 213/5JP FR, 200/400 Vac, ODP, 3 PH, Footless, Rolled Steel JP Pump High Efficiency, 13550933

SPECIFICATIONS

Frame 213/5JP
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3515 rpm
Slip 2.36 %
Rated voltage 200/400 V
Rated current 41.2/20.6 A
L. R. Amperes 268/134 A
LRC 6.5x(Code G)
No load current 16.9/8.46 A
Rated torque 22.4 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.4651 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 123 lb
