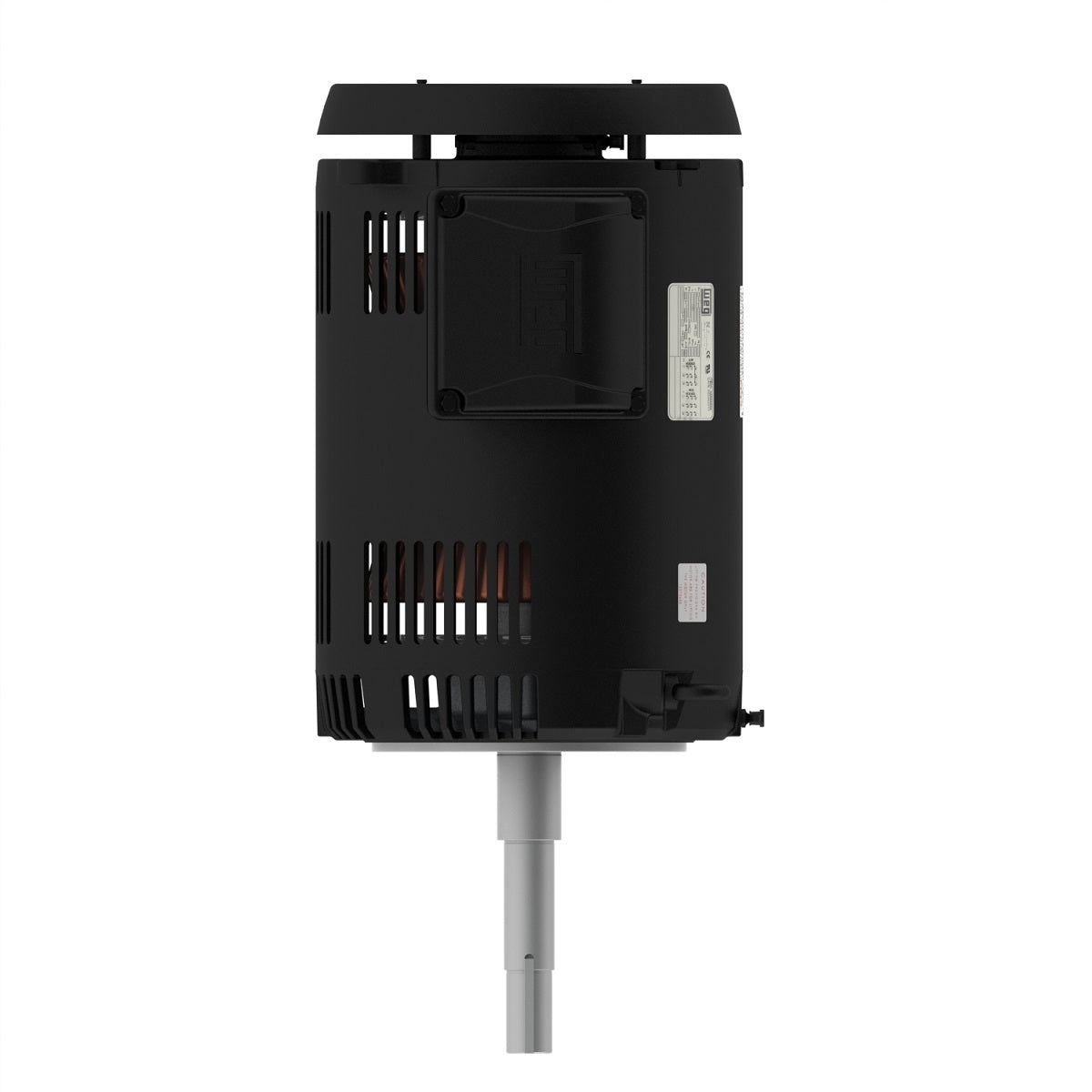

Weg Electric 01536OT3H215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA Efficiency.

01536OT3H215JMV-S, 15 Hp, 3600 Rpm, 213/5JM Frame, 575 Vac, ODP, 3 PH, Footless, Rolled Steel JM Pump NEMA Efficiency.

Engineering Data

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 15 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 213/5JM
Output 15 HP (11 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3535 rpm
Slip 1.81 %
Rated voltage 575 V
Rated current 13.8 A
L. R. Amperes 93.6 A
LRC 6.8x(Code G)
No load current 4.93 A
Rated torque 22.3 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.5512 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
