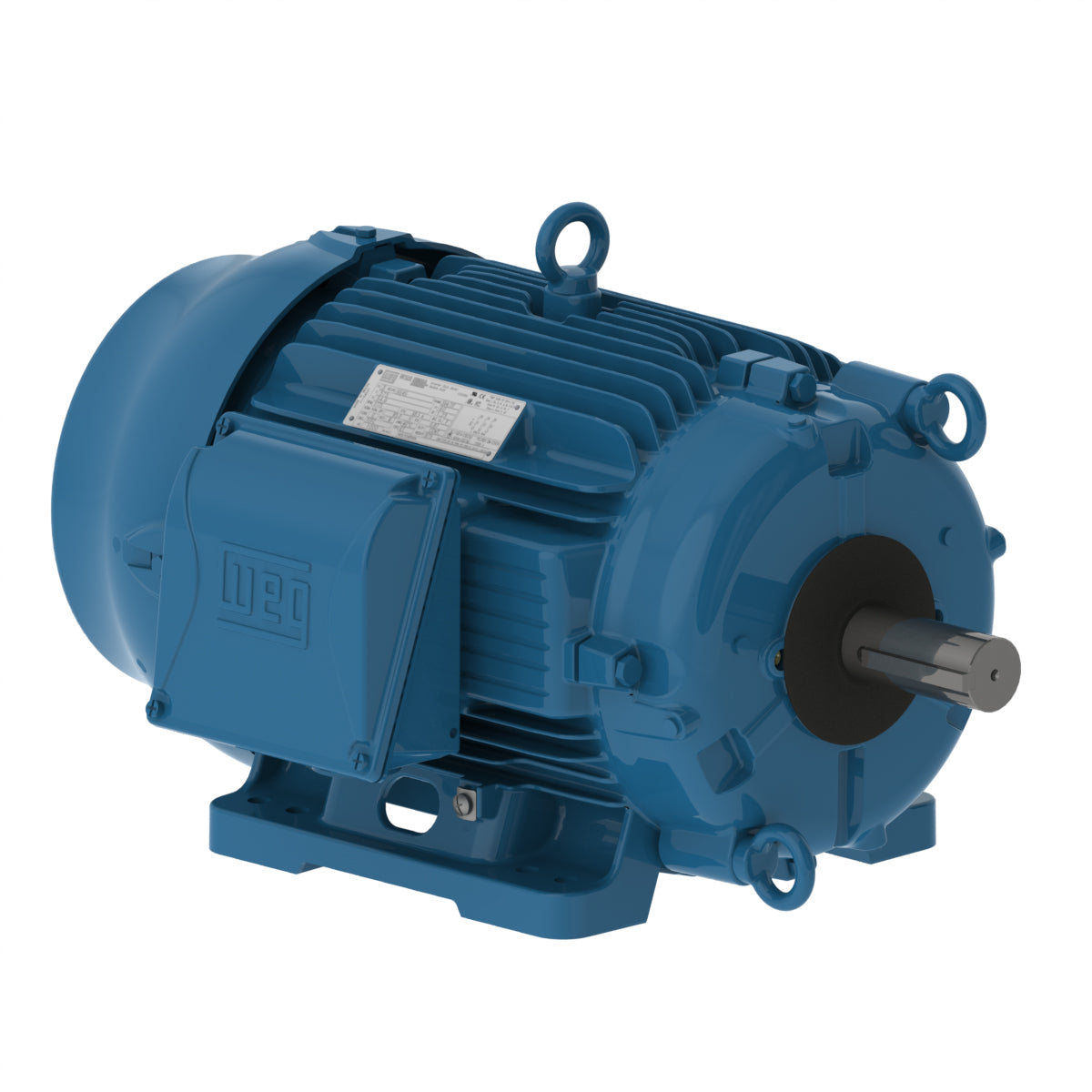

Weg Electric 01589EP3PCT254VF1-W2, 15 Hp, 900/1800 Rpm, 254T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

01589EP3PCT254VF1-W2, 15 Hp, 900/1800 Rpm, 254T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 3.75/15 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 254T
Output 15 HP (11 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 200 V
Rated current 43.7 A
L. R. Amperes 293 A
LRC 6.7x(Code H)
No load current 18.9 A
Rated torque 44.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 2.62 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
