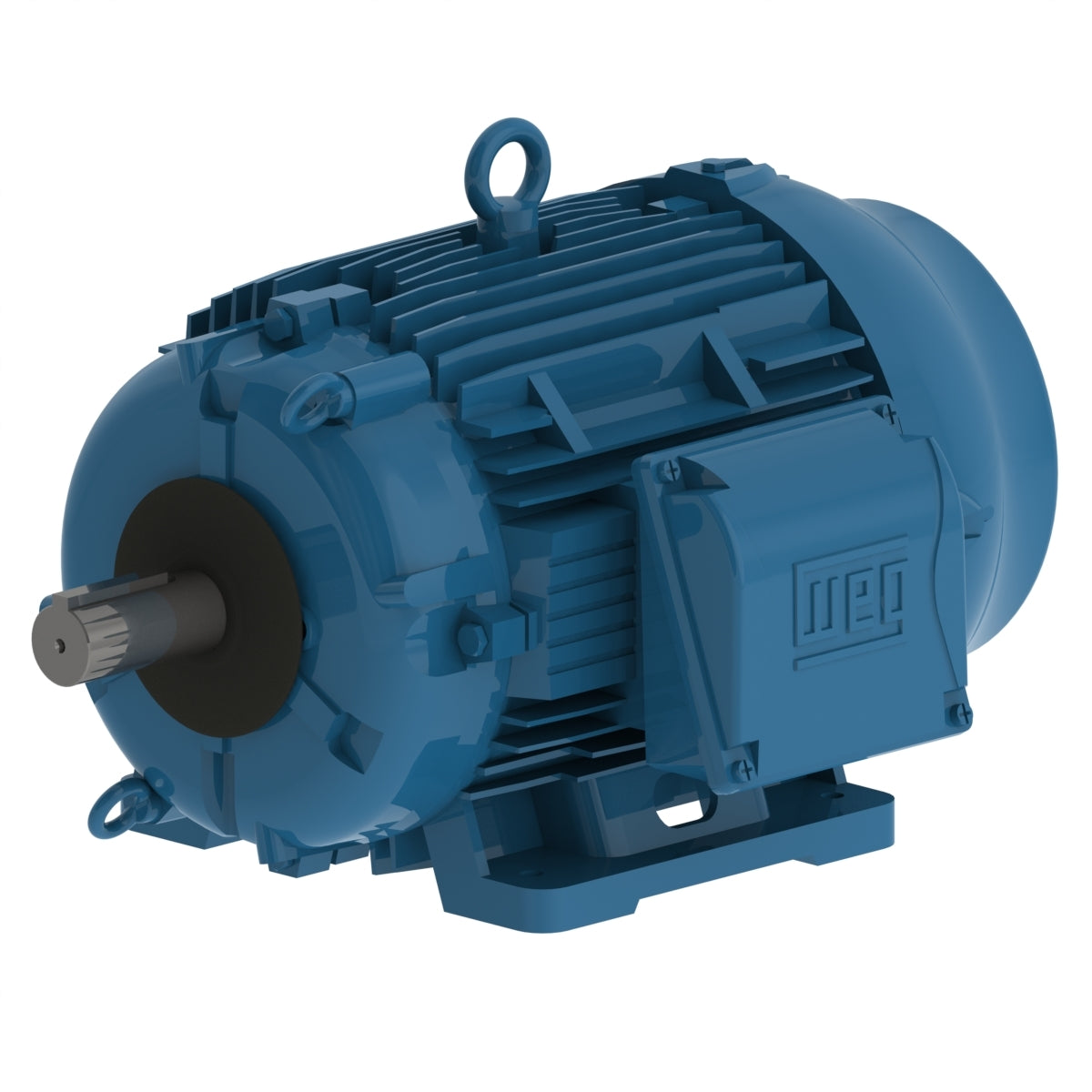

Weg Electric 01589EP3PCT284V2-W22, 15 Hp, 900/1800 Rpm, 284T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

01589EP3PCT284V2-W22, 15 Hp, 900/1800 Rpm, 284T Frame, 200 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC motors are built according to NEMA standard, and designed to operate with 100% of humidity in the most corrosive environments. All the line is certified for use with frequency inverter, and can operate in both the horizontal and vertical position. The Cooling Tower was tested according to the IEEE 112, method B, and it has efficiency values certified by UL (CSA C390). They ensure high efficiency levels with high torque, even at low speeds.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 3.75/15 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 284T
Output 15 HP (11 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 200 V
Rated current 41.9 A
L. R. Amperes 293 A
LRC 7.0x(Code H)
No load current 16.1 A
Rated torque 44.5 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 4.68 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
