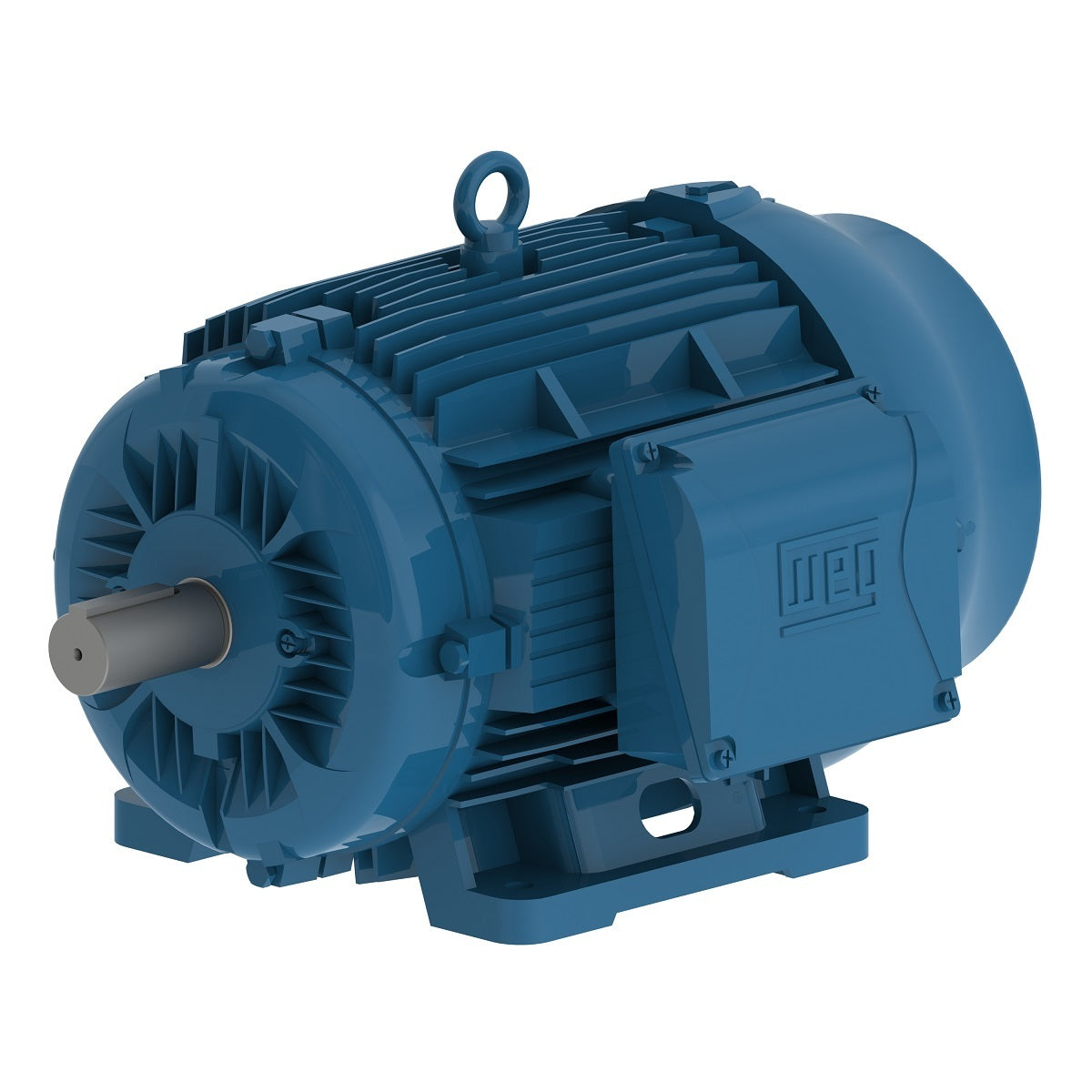

Weg Electric 01812ET3Y200L-W22, 25 HP, 1200 Rpm, 200L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

01812ET3Y200L-W22, 25 HP, 1200 Rpm, 200L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 Tru-Metric IE3.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 25 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 200L
Output 25 HP (18.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 460 V
Rated current 31.6 A
L. R. Amperes 224 A
LRC 7.1
No load current 15.4 A
Rated torque 111 ft.lb
Locked rotor torque 270 %
Breakdown torque 320 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
